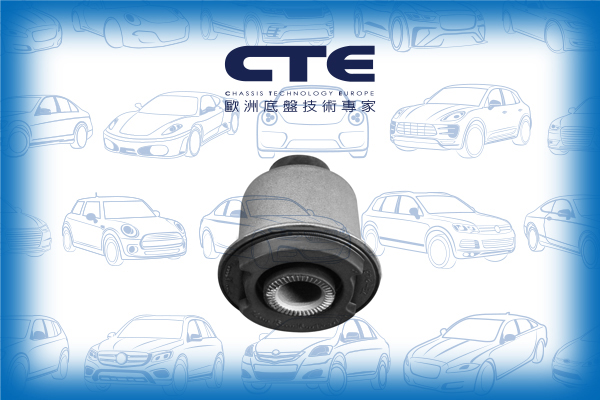

CBH02034
| Designation | Rubber Bushing |
| Position | Front; Lower Front Axle |
| OE No. | 48068-22100 / 48068-22130 / 48068-22140 / 48068-30270 / 48069-22100 / 48069-22130 / 48069-22140 / 48069-30270 / 48654-22050 / 48654-30070 |
| Length | 55.5 mm |
| Width | 55 mm |
| Height | 55 mm |
| Net Weight | 0.35 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02034 | FRONT; LOWER FRONT AXLE | 48068-22100 48068-22130 48068-22140 48068-30270 48069-22100 48069-22130 48069-22140 48069-30270 48654-22050 48654-30070 |
|
 |

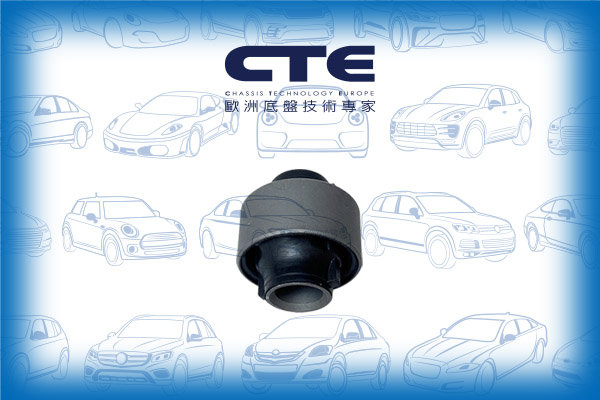

CBH02076 | LOWER FRONT AXLE; LOWER | 48655-22010 48655-22030 48655-30130 |
|
 |

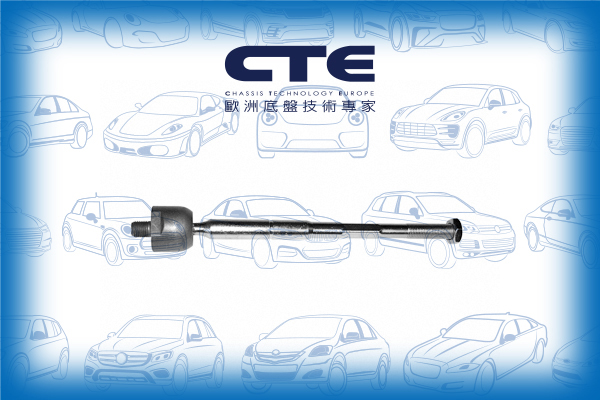

CRE02034 | FRONT AXLE | 45503-29185 45503-29305 |
|
 |
CRE02141 | FRONT AXLE LEFT; FRONT AXLE RIGHT | 45503-29785 45503-39105 |
|
 |

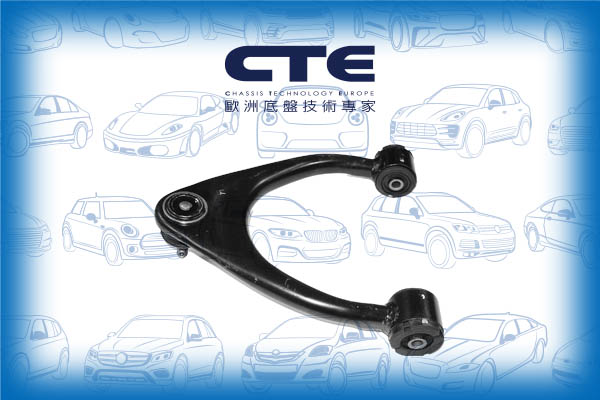

CS-247L | UPPER; FRONT AXLE LEFT | 48630-59025 |
|
 |

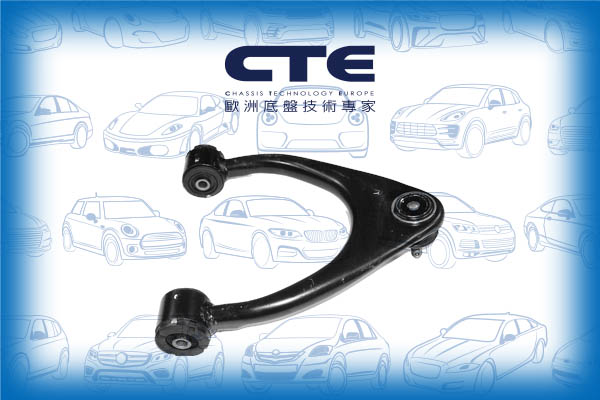

CS-247R | UPPER; FRONT AXLE RIGHT | 48610-59025 |
|
 |

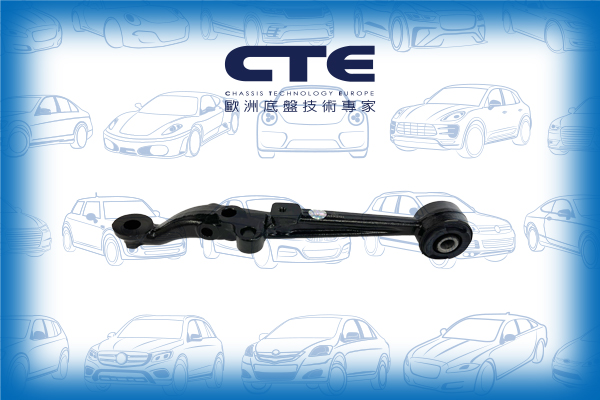

CS-248L | FRONT AXLE LEFT; LOWER; FRONT | 48069-53010 48069-59025 |
|
 |

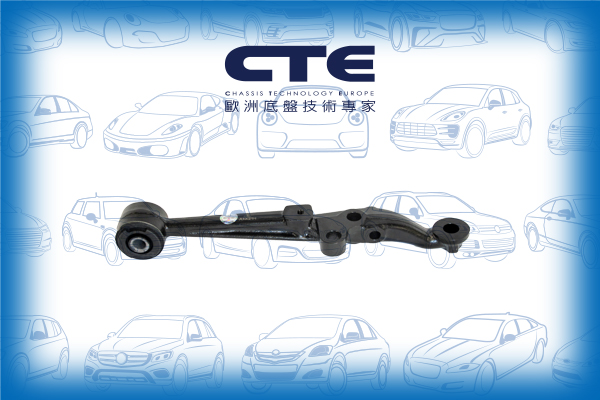

CS-248R | FRONT AXLE RIGHT; LOWER; FRONT | 48068-53010 48068-59025 |
|
 |
CS02160 | REAR AXLE; INNER | 48705-30080 |
|
 |

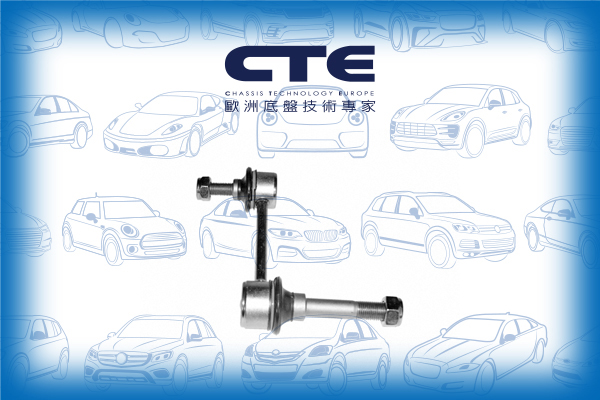

CSL02020 | FRONT AXLE LEFT; FRONT AXLE RIGHT (A= 106.5MM) | 48820-22040 48820-22041 |
|
 |
CSL02122 | REAR AXLE LEFT; REAR AXLE RIGHT | 48830-22051 48830-51010 K750065 |
|
 |
CTE02017L | 45470-39155 45470-39205 45470-39315 45470-59035 45470-59036 45470-59085 |
||
 |
CTE02017R | 45460-39445 45460-39575 45460-39845 45460-59035 45460-59036 |
| Model (Year) |
|---|
|
IS I (_E1_) IS SportCross (_E1_) |
| Model (Year) |
|---|
|
ALTEZZA (_E1_) |
