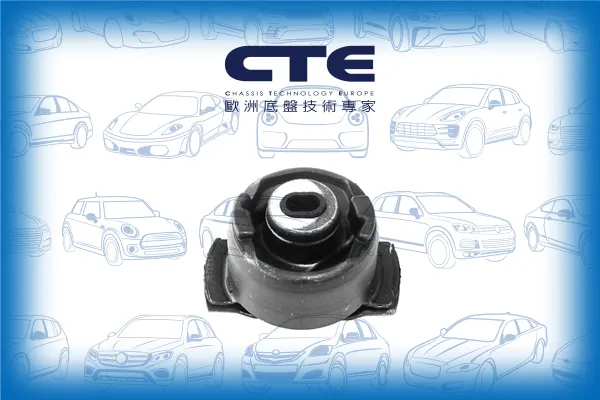

CBH10006
| Designation | Rubber Bushing |
| Position | Front Axle Left; Front Axle Right |
| OE No. | 82 00 051 813 / 82 00 427 869 / 82 00 597 258 / 82 00 714 956 |
| Length | 106 mm |
| Width | 106 mm |
| Height | 73 mm |
| Net Weight | 0.53 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

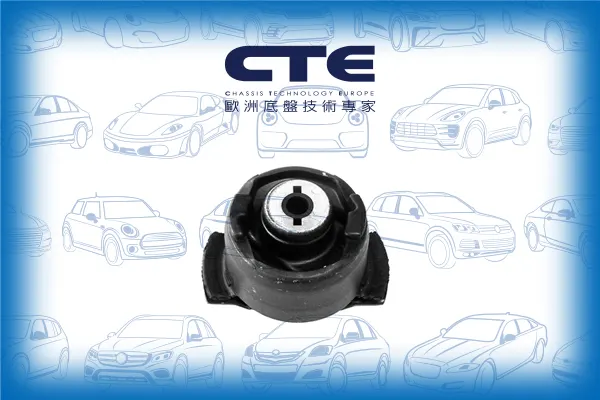

CBH10005 | REAR AXLE LEFT; REAR AXLE RIGHT | 77 00 415 488 77 00 416 271 82 00 051 812 82 00 400 000 82 00 427 868 82 00 597 259 82 00 714 955 |
|
 |
CBH10006 | FRONT AXLE LEFT; FRONT AXLE RIGHT | 82 00 051 813 82 00 427 869 82 00 597 258 82 00 714 956 |
|
 |

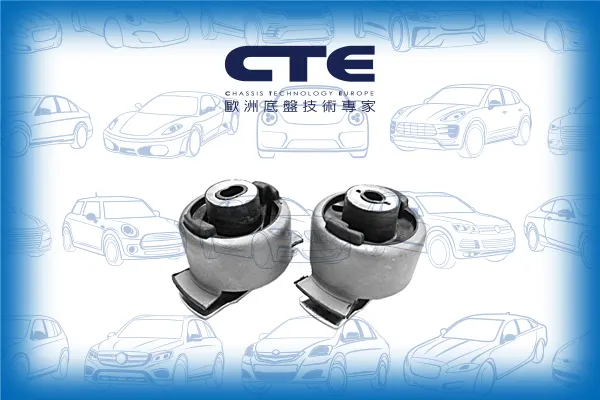

CBH10007 | FRONT AXLE LEFT; FRONT AXLE RIGHT | 77 00 415 488 77 00 416 271 77 01 209 534 82 00 051 812 82 00 051 813 82 00 400 000 82 00 427 868 82 00 427 869 82 00 597 258 82 00 597 259 82 00 714 955 82 00 714 956 |
|
 |
CBH10008 | LOWER FRONT AXLE; LOWER | 54 50 184 33R 54 50 481 01R 54 50 508 04R 54 50 510 51R 82 00 002 869 82 00 049 626 82 00 204 837 82 00 204 838 82 00 266 038 82 00 266 041 82 00 423 380 82 00 423 381 82 00 423 382 82 00 458 813 82 00 458 814 82 00 484 810 82 00 484 811 82 00 602 616 82 |
|
 |
CBH10009 | LOWER; REAR; FRONT AXLE LEFT; FRONT AXLE RIGHT | 54 50 184 33R 54 50 481 01R 54 50 508 04R 54 50 510 51R 82 00 002 868 82 00 204 837 82 00 204 838 82 00 266 038 82 00 266 041 82 00 423 380 82 00 423 381 82 00 423 382 82 00 458 813 82 00 458 814 82 00 484 810 82 00 484 811 82 00 602 616 82 00 602 617 82 |
|
 |
CBJ15005A | FRONT AXLE | 40 16 066 76R 40160-00Q0C 40160-00Q0G 44 19 075 44 22 183 54 50 184 33R 54 50 481 01R 54 50 508 04R 54 50 510 51R 60 40 002 105 77 01 476 576 77 01 478 029 82 00 204 837 82 00 204 838 82 00 266 038 82 00 266 041 82 00 423 380 82 00 423 381 82 00 423 382 8 |
|
 |

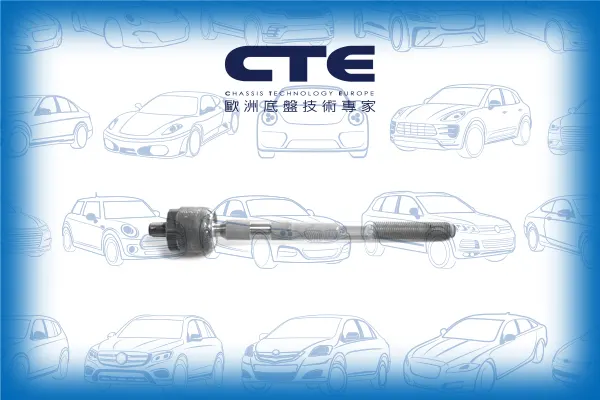

CRE10003 | FRONT AXLE LEFT; FRONT AXLE RIGHT (D= M14X1.5 , C= M12X1.0) | 77 01 472 766 77 01 478 551 |
|
 |

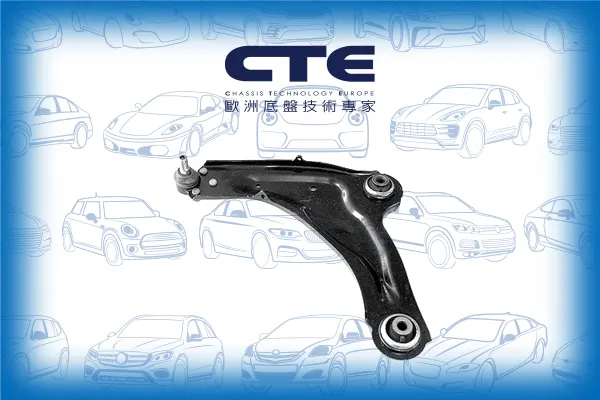

CS-1005L | FRONT AXLE; LOWER; LEFT | 54 50 168 05R 82 00 026 654 82 00 232 030 82 00 273 728 82 00 389 134 82 00 452 715 82 00 602 612 |
|
 |

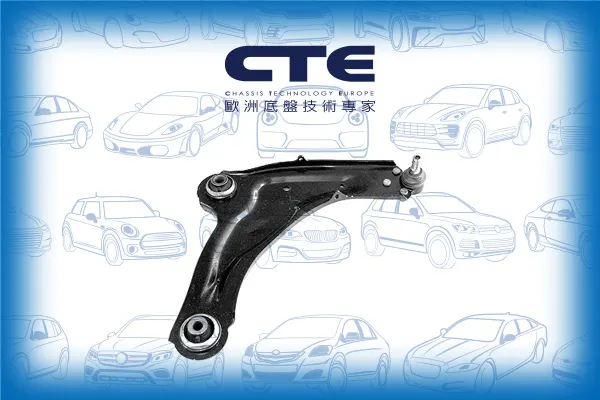

CS-1005R | FRONT AXLE; LOWER; RIGHT | 54 50 020 29R 82 00 026 655 82 00 232 032 82 00 273 729 82 00 389 135 82 00 452 716 82 00 602 613 |
|
 |
CSL15013 | FRONT AXLE LEFT; FRONT AXLE RIGHT (A= 279MM) | 44 07 573 44 08 904 44 17 973 54616-00Q0A 54616-00Q0J 54616-00Q1C 54616-00Q1F 54616-00QAC 546180393R 546181944R 6000640472 7711160426 82 00 002 870 8200661217 8660005547 91167000 93450030 93858917 |
| Model (Year) |
|---|
|
LAGUNA II (BG0/1_) LAGUNA II Grandtour (KG0/1_) |
