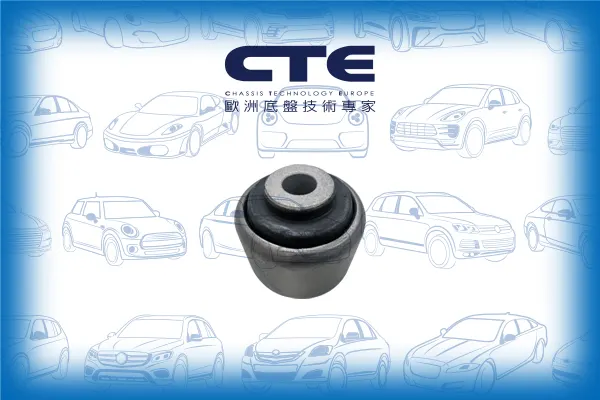

CBH20032
| Designation | Rubber Bushing |
| Position | Front Axle; Rear; both sides |
| OE No. | 7H0 407 182 / 7H0 407 182A |
| Length | 60.1 mm |
| Width | 60.1 mm |
| Height | 64 mm |
| Net Weight | 0.29 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH20027 | FRONT AXLE; BOTH SIDES; FRONT | 2H0 407 183A 7H0 407 183 |
|
 |
CBH20032 | FRONT AXLE; REAR; BOTH SIDES | 7H0 407 182 7H0 407 182A |
|
 |
CBJ20009 | LOWER; FRONT AXLE RIGHT; FRONT AXLE LEFT | 7576024 7E0 407 361 7E0 407 361A 7H0 407 361 7H0 407 361A 7H8 407 361 7H8 407 361A 7H8 407 362 |
|
 |
CBJ20009A | LOWER; FRONT AXLE RIGHT; FRONT AXLE LEFT | 7576024 7E0 407 361 7E0 407 361A 7H0 407 361 7H0 407 361A 7H8 407 361 7H8 407 361A 7H8 407 362 |
|
 |
CRE20010 | FRONT AXLE LEFT; FRONT AXLE RIGHT (D= M16X1.5 , C= M16X1.5) | 7H0 422 807 |
|
 |

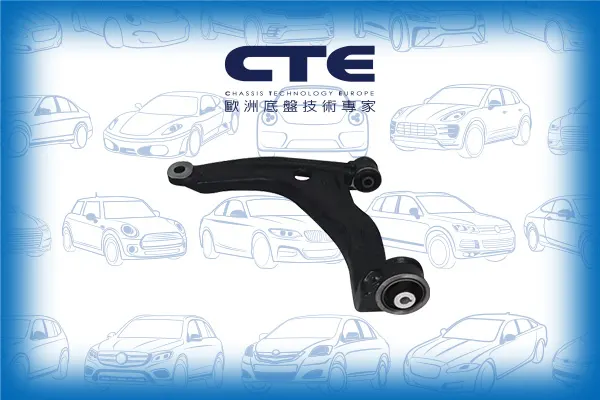

CS-2031L | FRONT AXLE LEFT | 7H0 407 151E 7H0 407 151F 7H0 407 151G |
|
 |

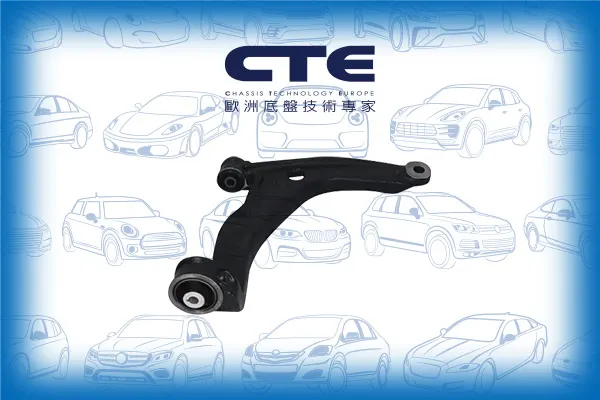

CS-2031R | FRONT AXLE RIGHT; RIGHT | 7H0 407 152E 7H0 407 152F 7H0 407 152G |
|
 |
CSL20015 | FRONT AXLE LEFT; FRONT AXLE RIGHT (A= 260MM) | 7H0 411 317 7H0 411 317A 7H5 411 317 7H5 411 317A 7H5 411 317B 7H5 411 317D 7H5 411 317E |
|
 |
CSR20001L | FRONT AXLE LEFT | 7E0 419 803 7H0 419 803B 7H0 419 803C 7H0 419 803D 7H0 419 803E 7H0 419 803F |
|
 |
CSR20001R | FRONT AXLE RIGHT | 7E0 419 804 7H0 419 804B 7H0 419 804C 7H0 419 804D 7H0 419 804E 7H0 419 804F |
|
 |
CTE20004L | FRONT AXLE LEFT; OUTER (C= M16X1.5) | 7E0 422 817 7H0 422 817A 7H0 422 817B 7H0 422 817C 7H0 422 817D |
|
 |
CTE20004R | FRONT AXLE RIGHT; OUTER (C= M16X1.5) | 7E0 422 818 7H0 422 818A 7H0 422 818B 7H0 422 818C 7H0 422 818D |
| Model (Year) |
|---|
|
CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC) MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ) | TRANSPORTER / CARAVELLE | EUROVAN | CARAVELLE TRANSPORTER T5 Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, 7F TRANSPORTER T5 Van (7HA, 7HH, 7EA, 7EH) |
