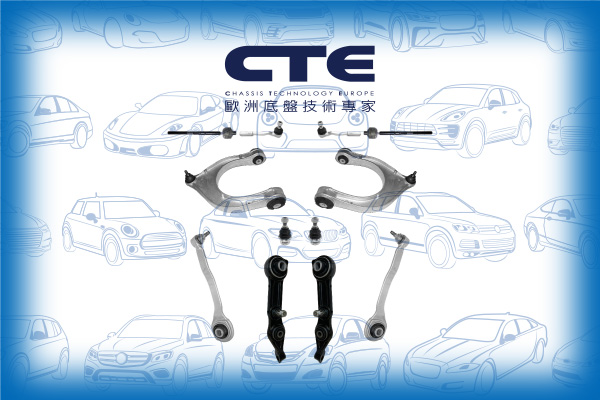

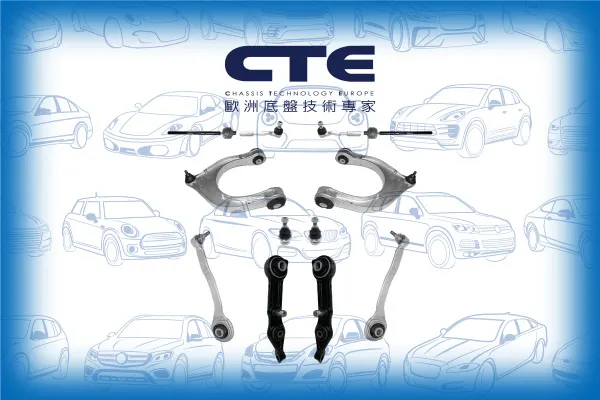

COS21004
| Designation | Repair Kit |
| Position | |
| OE No. | |
| Length | 480 mm |
| Width | 445 mm |
| Height | 190 mm |
| Net Weight | 18.09 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21018 | RUBBER BUSHING | FRONT LOWER ARM INNER | 211 333 11 14 230 333 06 14 A211 333 11 14 A230 333 06 14 |
 |

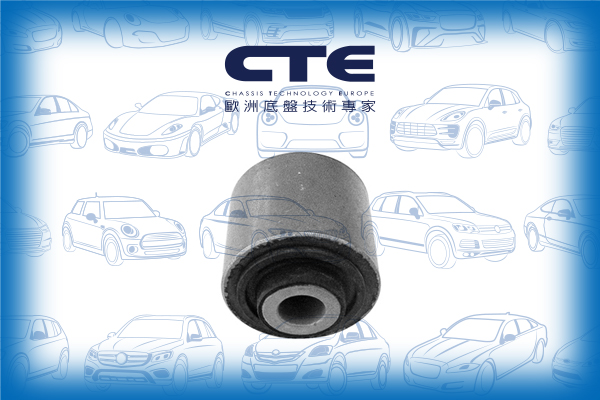

CBH21019 | RUBBER BUSHING | FRONT LOWER ARM INNER | 211 333 19 14 A211 333 19 14 |
 |

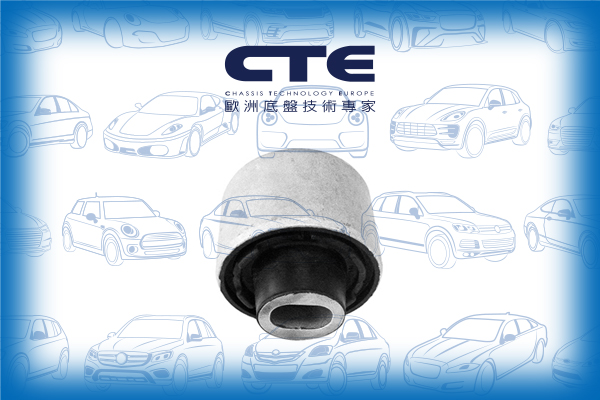

CBH21020 | RUBBER BUSHING | FRONT LOWER ARM INNER | 203 333 03 14 203 333 09 14 A203 333 03 14 A203 333 09 14 |
 |

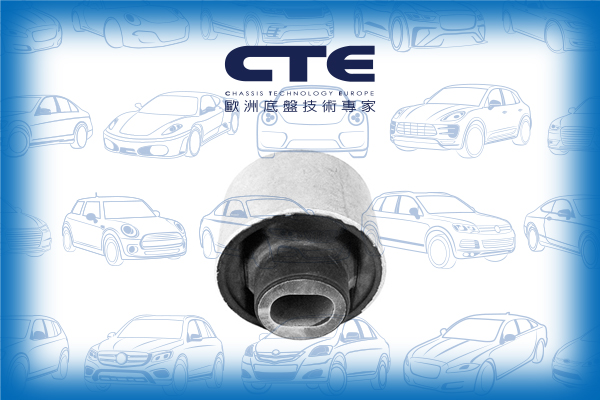

CBH21021 | RUBBER BUSHING | FRONT LOWER ARM INNER | 211 333 10 14 211 333 24 14 211 333 25 14 211 333 28 14 211 333 29 14 A 211 333 10 14 A 211 333 25 14 A 211 333 28 14 A 211 333 29 14 |
 |

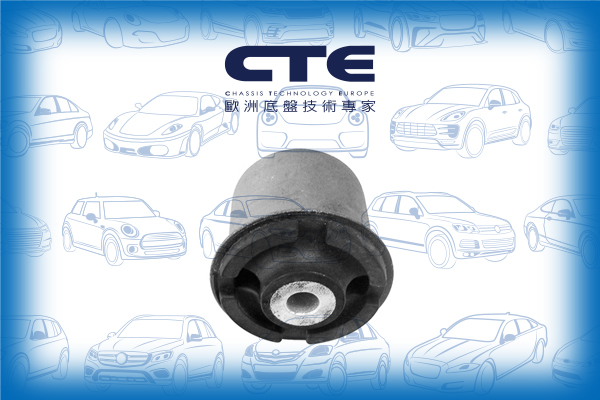

CBH21022 | RUBBER BUSHING | FRONT UPPER ARM INNER | 211 333 22 14 A 211 333 22 14 |
 |

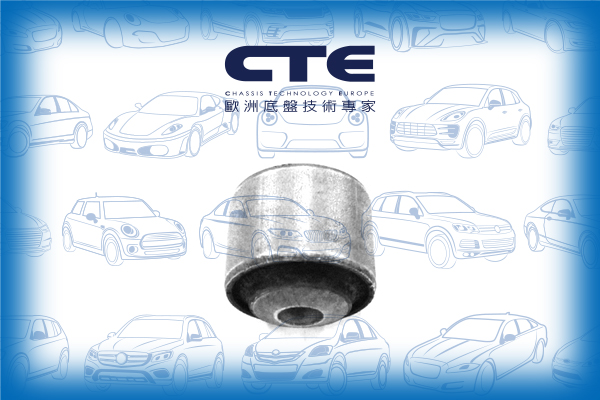

CBH21027 | RUBBER BUSHING | FRONT UPPER ARM OUTER | 230 350 27 06 230 350 28 06 |
 |

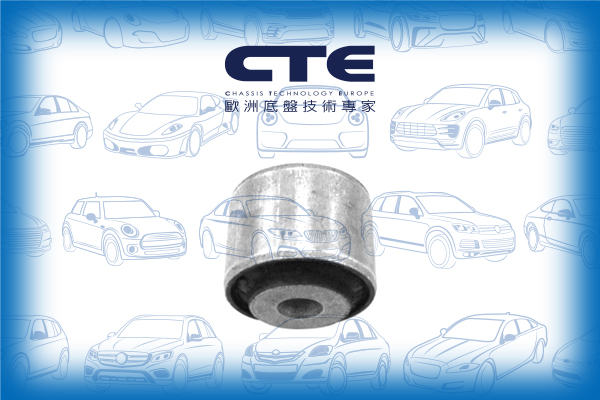

CBH21028 | RUBBER BUSHING | FRONT UPPER ARM INNER | 230 350 27 06 230 350 28 06 |
 |

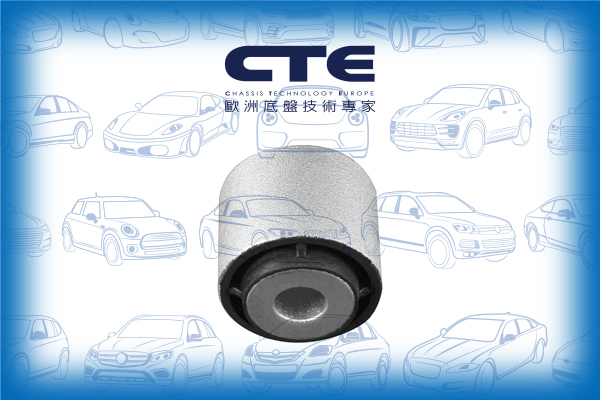

CBH21029 | RUBBER BUSHING | FRONT UPPER ARM OUTER | 230 350 35 06 230 350 36 06 |
 |

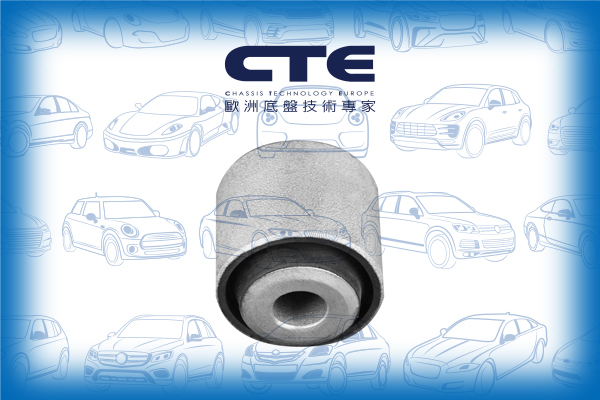

CBH21030 | RUBBER BUSHING | FRONT UPPER ARM INNER | 230 350 35 06 230 350 36 06 |
 |

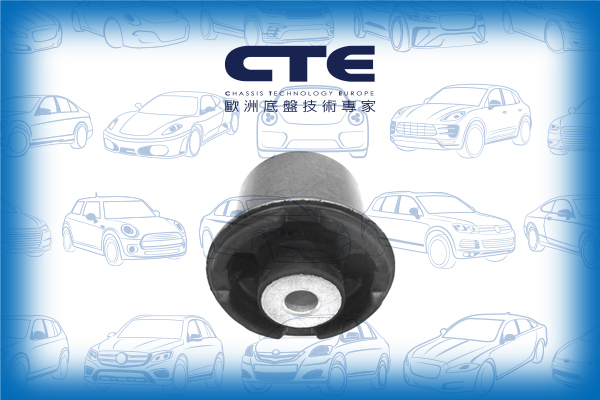

CBH21037 | RUBBER BUSHING | FRONT UPPER ARM INNER | 211 330 55 07 211 330 57 07 |
 |

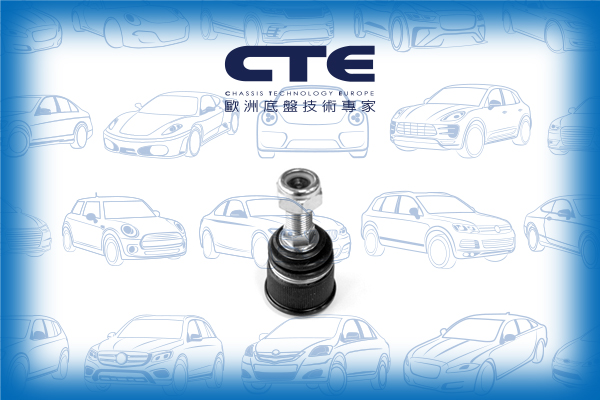

CBJ21004 | BALL JOINT | FRONT LOWER LH/ RH | 211 323 00 68 211 323 03 68 220 323 03 68 A 211 323 00 68 A 211 323 03 68 A 220 323 03 68 |
 |

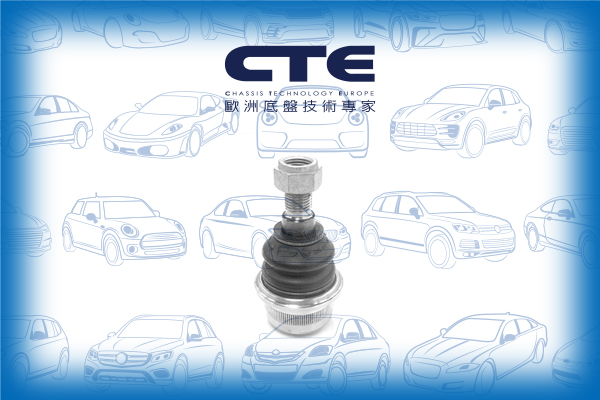

CBJ21007 | BALL JOINT | FRONT LOWER LH/ RH | 211 330 02 35 211 330 04 35 220 330 04 27 220 333 01 27 220 333 02 27 220 333 03 27 220 333 04 27 220 333 04 37 220 333 07 27 A211 330 02 35 A211 330 04 35 A220 330 01 27 A220 330 03 27 A220 330 04 27 A220 333 01 27 A220 333 02 27 A220 333 03 27 A220 333 |
 |
COS21004 | REPAIR KIT | ||
 |

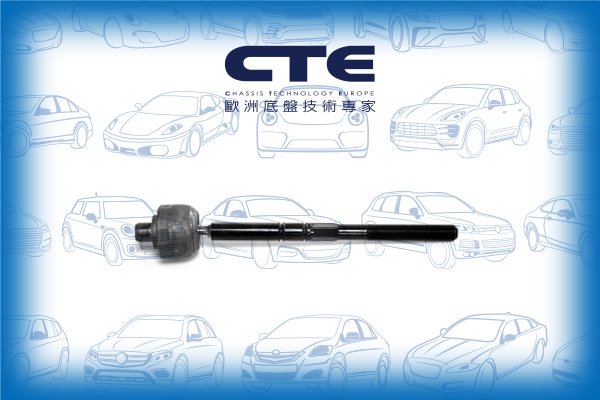

CRE21001 | RACK END | D= M14X1.5 , C= M16X1.5 | 211 330 29 03 211 330 29 03 SK 220 338 07 15 230 338 00 15 230 338 00 15 SK A211 330 29 03 A220 338 07 15 A230 338 00 15 |
 |

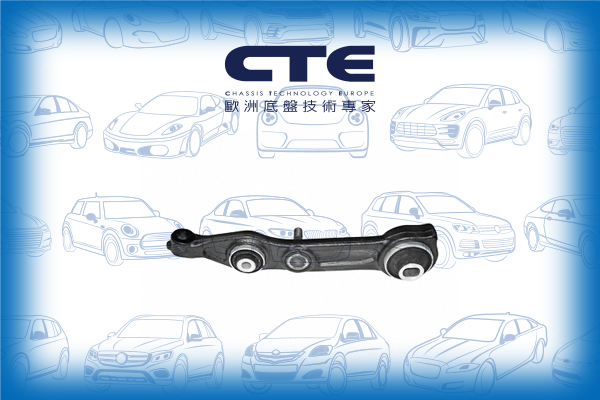

CS-2113L | CONTROL ARM | FRONT LOWER LH | 211 330 81 07 211 330 91 07 A211 330 81 07 A211 330 91 07 |
 |

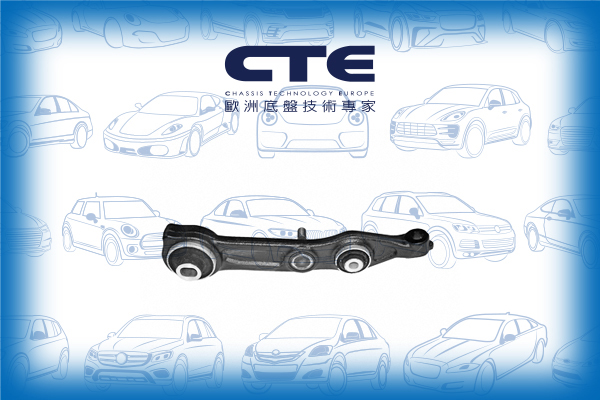

CS-2113R | CONTROL ARM | FRONT LOWER RH | 211 330 82 07 211 330 92 07 A211 330 82 07 A211 330 92 07 |
 |

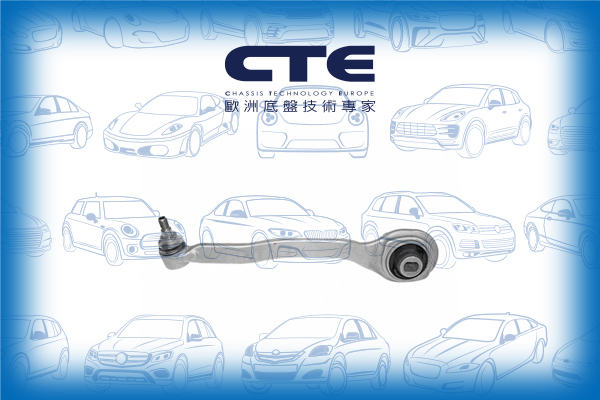

CS-2115L | CONTROL ARM | FRONT LOWER LH | 211 330 11 11 211 330 15 11 211 330 29 11 211 330 43 11 211 330 49 11 230 330 17 11 A 211 330 11 11 A 211 330 15 11 A 211 330 29 11 A 211 330 43 11 A 211 330 49 11 A 230 330 17 11 |
 |

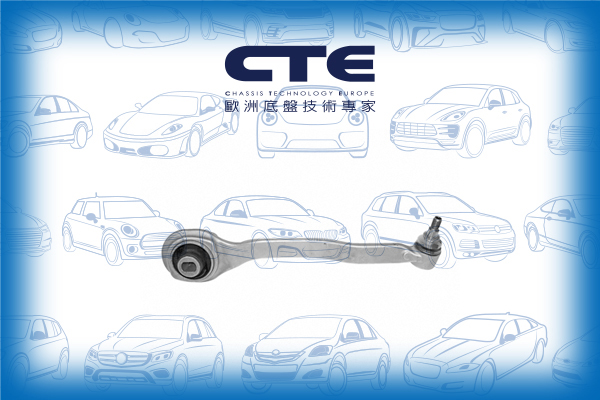

CS-2115R | CONTROL ARM | FRONT LOWER RH | 211 330 12 11 211 330 16 11 211 330 30 11 211 330 44 11 211 330 50 11 230 330 18 11 A 211 330 12 11 A 211 330 16 11 A 211 330 30 11 A 211 330 44 11 A 211 330 50 11 A 230 330 18 11 |
 |

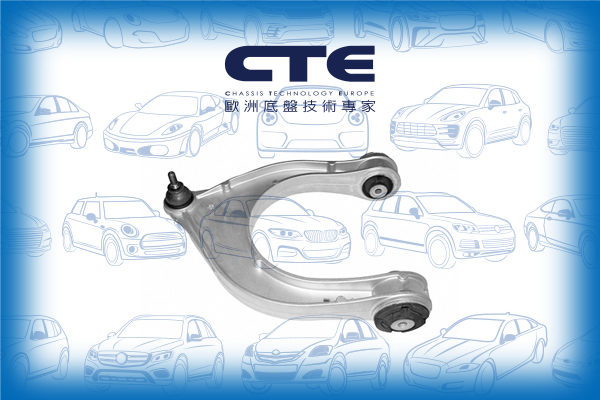

CS-2116L | CONTROL ARM | FRONT UPPER LH | 211 330 01 38 211 330 43 07 211 330 67 07 211 330 89 07 219 330 01 07 A211 330 01 38 A211 330 43 07 A211 330 67 07 A211 330 89 07 |
 |

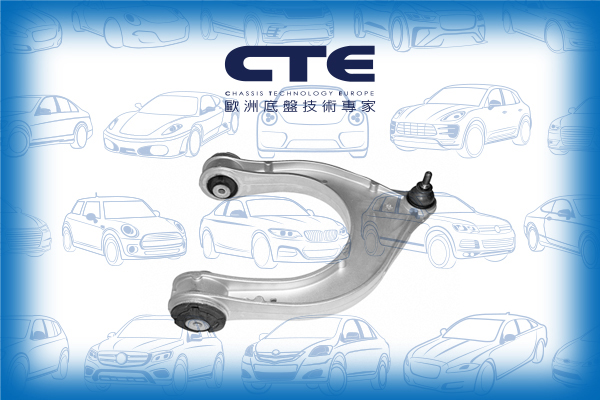

CS-2116R | CONTROL ARM | FRONT UPPER RH | 211 330 01 38 211 330 44 07 211 330 68 07 211 330 90 07 219 330 02 07 A211 330 01 38 A211 330 44 07 A211 330 68 07 A211 330 90 07 |
 |

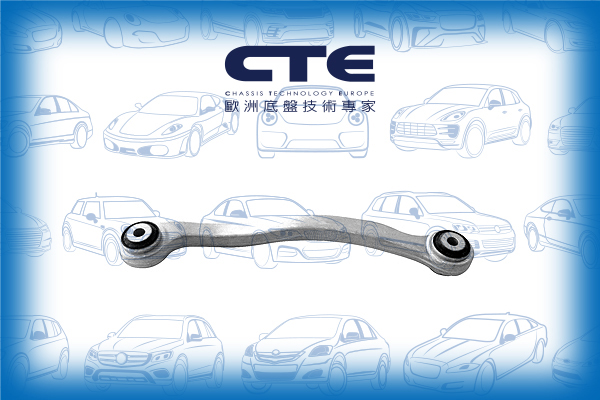

CS-2124L | CONTROL ARM | REAR UPPER LH | 230 350 27 06 A230 350 27 06 |
 |

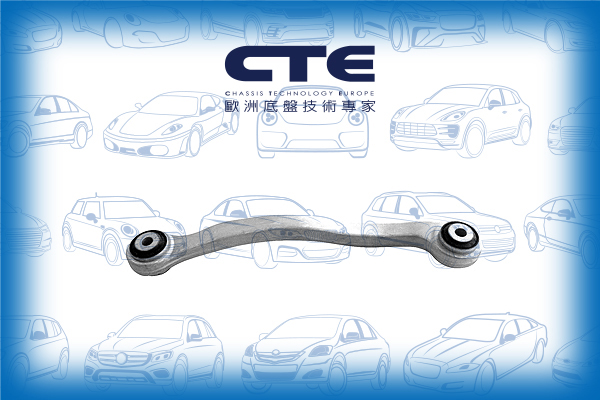

CS-2124R | CONTROL ARM | REAR UPPER RH | 230 350 28 06 A230 350 28 06 |
 |

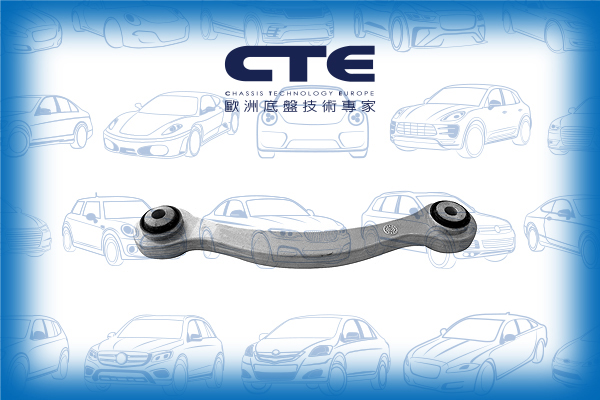

CS-2125L | CONTROL ARM | REAR UPPER LH | 230 350 31 06 230 350 35 06 A 230 350 31 06 A 230 350 35 06 |
 |

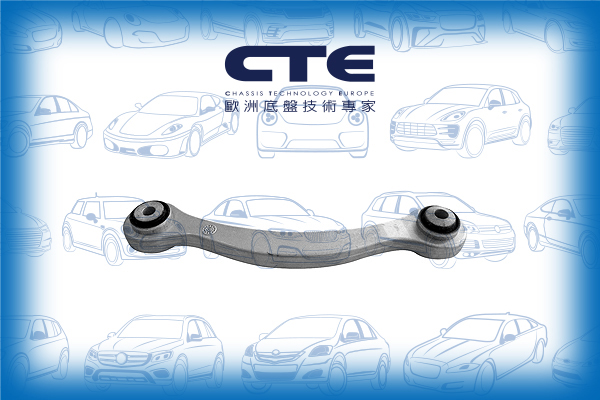

CS-2125R | CONTROL ARM | REAR UPPER RH | 230 350 32 06 230 350 36 06 A 230 350 32 06 A 230 350 36 06 |
 |

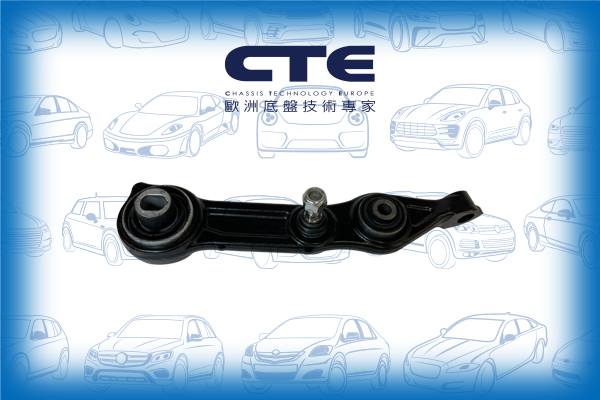

CS-2166L | CONTROL ARM | FRONT LOWER LH | 211 330 81 07 211 330 91 07 A 211 330 81 07 A 211 330 91 07 |
 |

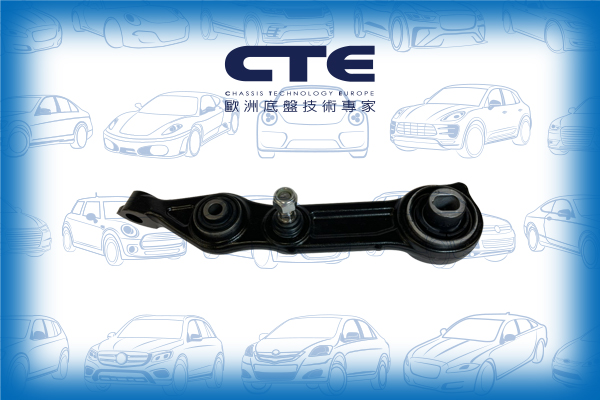

CS-2166R | CONTROL ARM | FRONT LOWER RH | 211 330 82 07 211 330 92 07 A 211 330 82 07 A 211 330 92 07 |
 |

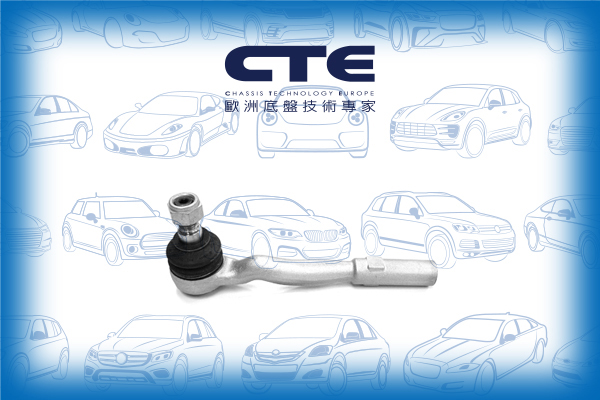

CTE21007L | TIE ROD END | FRONT AXLE LH (C= M14X1.5) | 211 330 01 03 211 330 23 03 211 330 25 03 211 330 27 03 A211 330 01 03 A211 330 23 03 A211 330 25 03 A211 330 27 03 |
 |

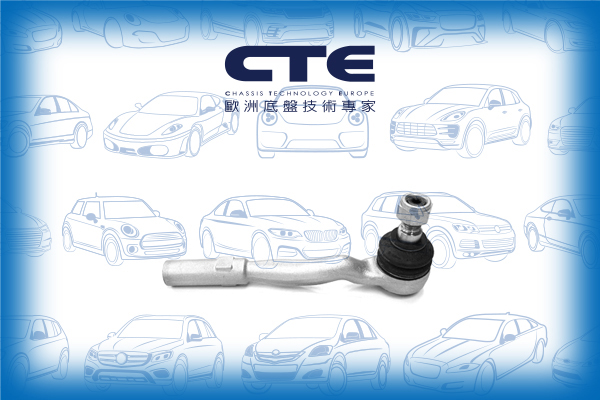

CTE21007R | TIE ROD END | FRONT AXLE RH (C= M14X1.5) | 211 330 02 03 211 330 24 03 211 330 26 03 211 330 28 03 A211 330 02 03 A211 330 24 03 A211 330 26 03 A211 330 28 03 |
| Model (Year) |
|---|
|
E-CLASS (W211) |
