COS32003
| Designation | Repair Kit |
| Position | FRONT |
| OE No. | |
| Length | 485 mm |
| Width | 390 mm |
| Height | 235 mm |
| Net Weight | 8.98 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH32001 | FRONT UPPER ARM INNER | 2W933084AE 2W933084AF 2W933084AG 2W933084AH 2W933084AJ 2W933084AK 2W933084AL 2W933091AE 2W933091AF 2W933091AG 2W933091AH 2W933091AJ 2W933091AK 2W933091AL 4W433084AA 4W433091AA 4W4Z-3084-AA 4W4Z-3085-AA 6W433084AA 6W433084AC 6W433091AA 6W433091AC 6W4Z-3084 |
|
 |
CBH32009 | FRONT LOWER ARM INNER | C2D4723 |
|
 |
CBH32011 | REAR LOWER ARM OUTER | AW933C254AE AW933C254AF AW933C255AE AW933C255AF C2D1536 C2D1537 C2D35200 C2D35201 |
|
 |
CBH32012 | REAR LOWER ARM INNER | C2D4014 |
|
 |
CBJ32004 | FRONT AXLE LH/RH | AW933C254AE AW933C254AF AW933C255AE AW933C255AF C2D1536 C2D1537 C2D33598 C2D33599 C2D35200 C2D35201 |
|
 |
COS32003 | FRONT | ||
 |
CRE32001 | D= M14X1.5 , C= M16X1.5 | 8W833A705AA 8X233200AC 8X233200BC C2D21139 C2D28554 C2D44327 C2D47149 C2Z2214 C2Z2215 DW933200AC DW933K651AA GX533L519AA |
|
 |
CS-3207L | FRONT UPPER LH | C2D2475 C2D36806 |
|
 |
CS-3207R | FRONT UPPER RH | C2D2474 C2D36804 |
|
 |
CS-3208 | FRONT LOWER LH/ RH | AW933C256AD AW933C256AE AW933C256AF C2D49933 C2D6343 |
|
 |
CS-3227 | FRONT LOWER LH/ RH | C2D21147 |
|
|
CS-3229L | FRONT UPPER LH | C2D21142 C2D36807 DW933091AC |
|
|
CS-3229R | FRONT UPPER RH | C2D21141 C2D36805 DW933084AC |
|
|
CS-3231L | REAR UPPER LH | 1W43-5K743-AA 2R83-5K743-AA 2R83-5K743-AC 2R83-5K743-AD 2R83-5K743-AF 2W43-5K743-AA 6W4Z-5500-AB 8X23-5K743-AB 8X23-5K743-AD C2C10226 C2C10439 C2C6777 C2C9219 C2D36811 C2D45610 C2D49449 C2P13877 C2P14597 C2Z31679 XR81853 XR848943 XR857655 XR857872 XW43-5K |
|
|
CS-3231R | REAR UPPER RH | 1W43-5K742-AA 2R83-5K742-AA 2R83-5K742-AC 6W4Z-5500-AA C2C10438 C2C6776 C2C9213 C2D36810 C2D45608 C2D49448 C2P13876 C2P14596 C2Z31678 XR81852 XR848942 XR857654 XR857871 XW43-5K742-AC |
|
 |

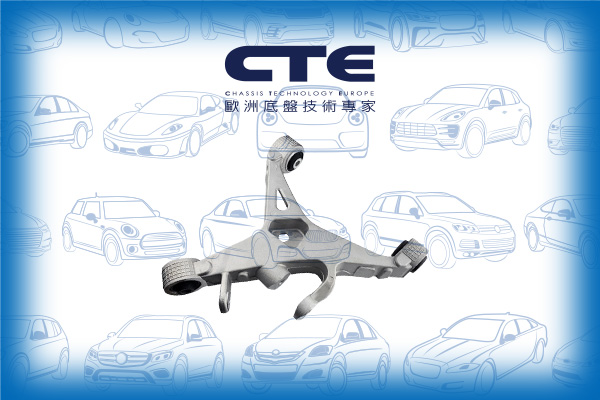

CS-3232L | REAR LOWER LH | 8X23-5B531-AA 8X23-5B531-AB C2D25221 C2D3029 C2D36809 C2D42388 C2Z3282 CX23-5B531-AA CX23-5B531-AB CX23-5B531-AC |
|
 |

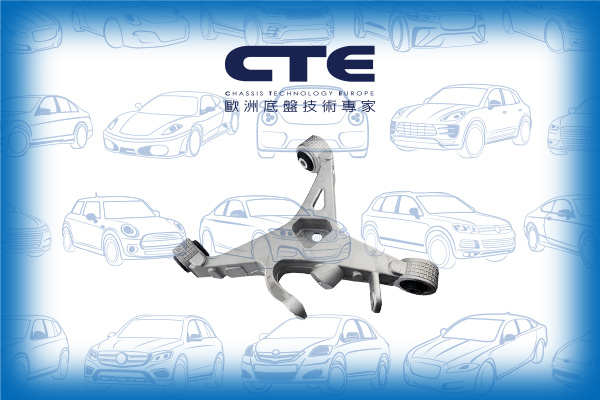

CS-3232R | REAR LOWER RH | 8X23-5B530-AA 8X23-5B530-AB C2D25220 C2D3028 C2D36808 C2D42387 C2D61158 C2Z3207 CX23-5B530-AA CX23-5B530-AB CX23-5B530-AC CX23-5B530-AD |
|
 |
CSL32001L | REAR LH (A= 219.3MM) | 2W935D498BB 2W935D498BD C2C18572 C2D49529 XR81693 XW435D498AB XW4Z-5C487-AB |
|
 |
CSL32001R | REAR RH (A= 219.3MM) | 2W935C486BB 2W935C486BD C2C18571 C2D49528 XR81692 XW4Z-5C486-AB |
|
 |
CSL32002 | FRONT (A= 146MM) | 2W93-5K483-AC 2W93-5K483-AD 2W93-5K483-CB C2C10793 C2C18573 C2C39468 C2D11879 C2D24220 EX53-5K483-AA GX73-3B438-AA T4N1048 XR822199 |
|
|
CTE32003 | REAR AXLE LH/ RH | C2C13835 C2C1802 C2C18419 C2C24305 C2C36985 C2D49813 C2D49814 C2D51041 C2D51042 C2D51043 C2D51044 C2D5361 C2D5992 C2D5993 C2Z3208 |
| Model (Year) |
|---|
|
XJ (X351) |
