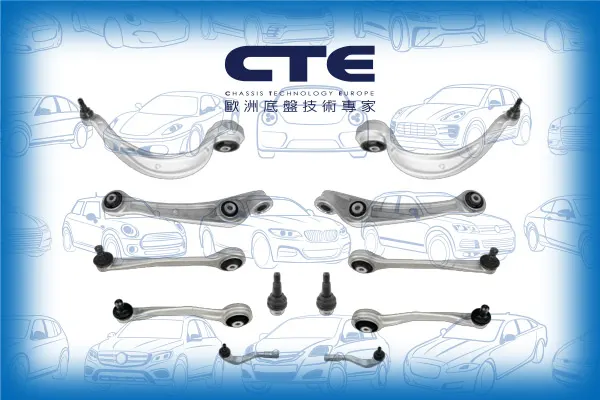

COS34003
| Designation | Repair Kit |
| Position | Front Axle |
| OE No. | |
| Length | 480 mm |
| Width | 445 mm |
| Height | 190 mm |
| Net Weight | 12.77 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19019 | FRONT AXLE; BOTH SIDES; LOWER; FRONT; INNER | 8K0 407 182A 8K0 407 182B |
|
 |
CBH19020 | FRONT AXLE LEFT; LOWER; FRONT; OUTER; FRONT AXLE RIGHT | 80A 407 181 |
|
 |

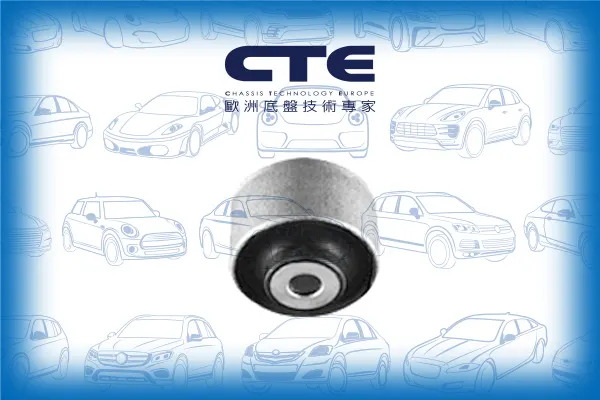

CBH19025 | INNER; UPPER FRONT AXLE | ||
 |
CBH19027 | FRONT AXLE; BOTH SIDES; LOWER; REAR; INNER | 8K0 407 183 8K0 407 183D 8K0 407 183F 8K0 407 183G |
|
 |
CBH19048 | REAR AXLE LEFT; REAR AXLE RIGHT; LOWER; FRONT | 8K0 501 529K 8K0 501 529L 8K0 501 529N 8K0 501 530K 8K0 501 530N 8K0 501 537C |
|
 |
CBH19052 | REAR AXLE; BOTH SIDES; UPPER; INNER; OUTER | 8K0 505 323D 8K0 505 323F 8K0 505 323H 8K0 505 324D 8K0 505 324F 8K0 505 324H 8KD 505 323 8KD 505 323B 8KD 505 324 8KD 505 324B PAB 505 323 PAB 505 324 |
|
 |
CBJ19012 | FRONT AXLE LEFT; FRONT AXLE RIGHT; LOWER; OUTER | 4G0 407 689A 4G0 407 689C 8W0 407 689A 8W0 407 689B PAB 407 689 |
|
 |
COS34003 | FRONT AXLE | ||
 |
CS-1936L | FRONT AXLE; LEFT; UPPER; FRONT | 8K0 407 505B 8K0 407 505P 8KD 407 505B 8KD 407 505C PAC 407 505 |
|
 |
CS-1936R | FRONT AXLE; RIGHT; UPPER; FRONT | 8K0 407 506B 8K0 407 506P 8KD 407 506B 8KD 407 506C PAC 407 506 |
|
 |
CS-1937L | FRONT AXLE; LEFT; UPPER; REAR | 8K0 407 509B 8K0 407 509K 8K0 407 509P 8KD 407 509B 8KD 407 509C PAC 407 509 |
|
 |
CS-1937R | FRONT AXLE; RIGHT; UPPER; REAR | 8K0 407 510B 8K0 407 510K 8K0 407 510P 8KD 407 510B 8KD 407 510C PAC 407 510 |
|
 |
CS-1944L | FRONT AXLE; LEFT; LOWER; FRONT | 8K0 407 151F 8K0 407 151G 8KD 407 151B PAC 407 151 |
|
 |
CS-1944R | FRONT AXLE; RIGHT; LOWER; FRONT | 8K0 407 152F 8K0 407 152G 8KD 407 152B PAC 407 152 |
|
 |
CS-1949L | REAR AXLE; UPPER; LEFT | 8K0 505 323D 8K0 505 323F 8K0 505 323H 8KD 505 323 8KD 505 323B PAB 505 323 |
|
 |
CS-1949R | REAR AXLE; UPPER; RIGHT | 8K0 505 324D 8K0 505 324F 8K0 505 324H 8KD 505 324 8KD 505 324B PAB 505 324 |
|
 |
CS-1950 | REAR AXLE; BOTH SIDES; LOWER; FRONT | 8K0 501 529L PAB 501 529B |
|
 |
CS-1966L | FRONT AXLE, BOTTOM LEFT | ||
 |
CS-1966R | FRONT AXLE, BOTTOM RIGHT | ||
 |
CS-1967L | FRONT AXLE, BOTTOM LEFT | ||
 |
CS-1967R | FRONT AXLE, BOTTOM RIGHT | ||
 |

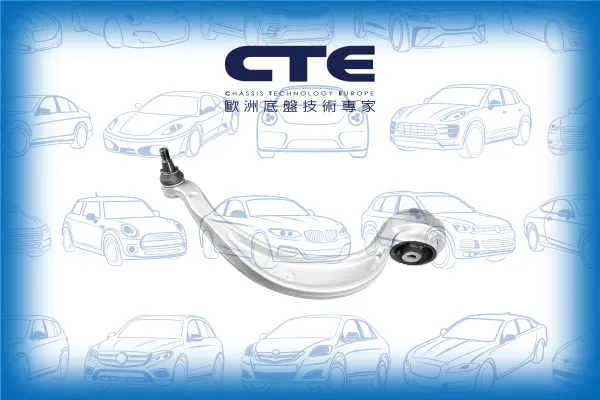

CS-3415L | FRONT AXLE LEFT; LOWER; REAR | 9A7 407 693 03 |
|
 |

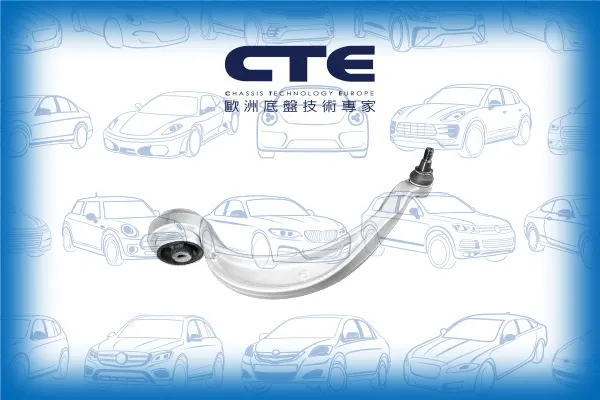

CS-3415R | FRONT AXLE RIGHT; LOWER; REAR | 9A7 407 694 03 |
|
 |

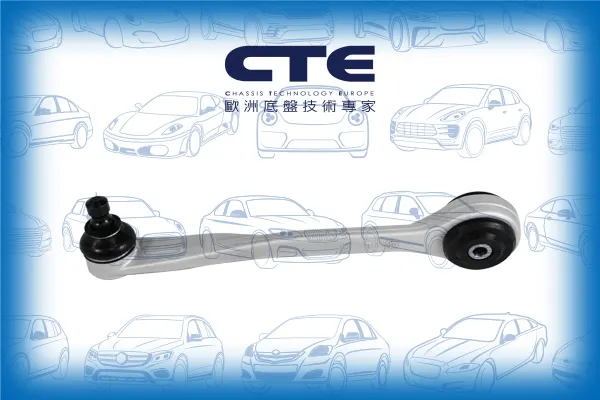

CS-3423L | FRONT AXLE, TOP LEFT | ||
 |

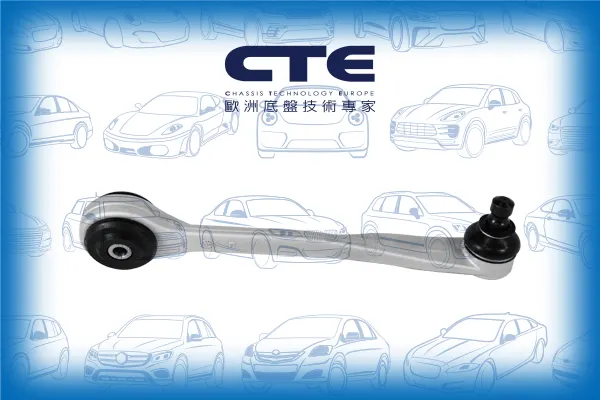

CS-3423R | FRONT AXLE, TOP RIGHT | ||
 |

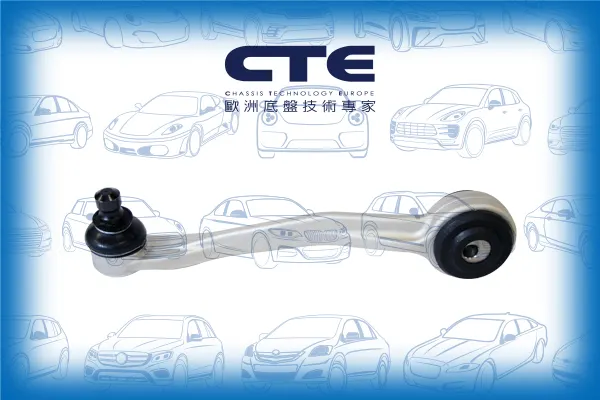

CS-3424L | FRONT AXLE, TOP LEFT | ||
 |

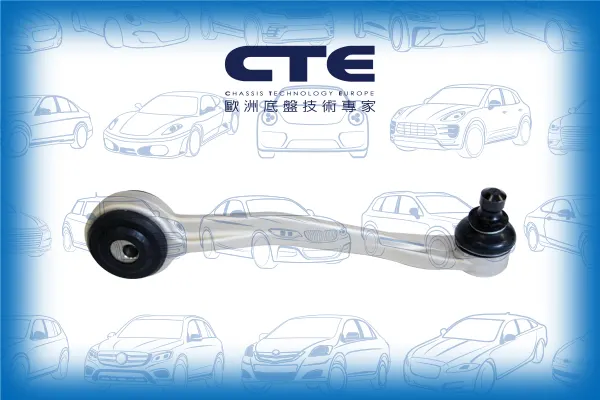

CS-3424R | FRONT AXLE, TOP RIGHT | ||
 |

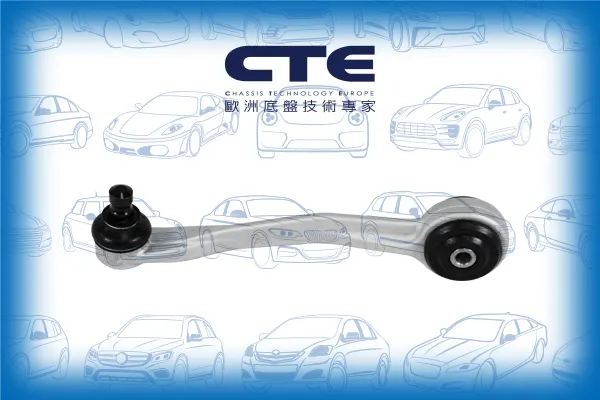

CS-3427L | FRONT AXLE, TOP LEFT | ||
 |

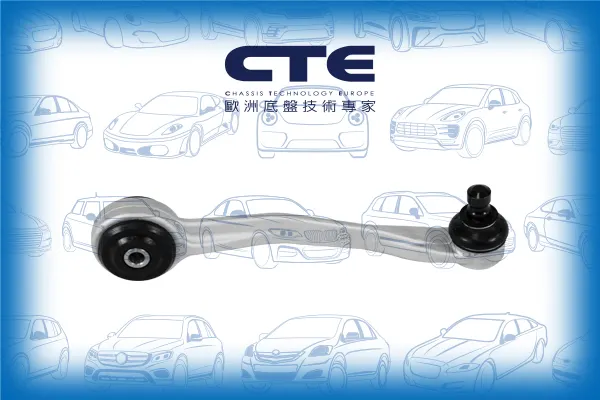

CS-3427R | FRONT AXLE, TOP RIGHT | ||
 |

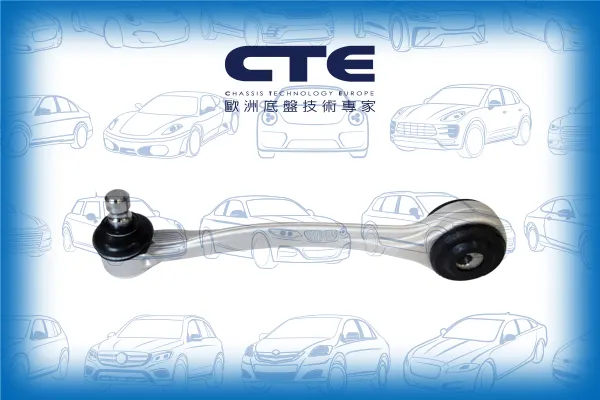

CS-3428L | FRONT AXLE, TOP LEFT | ||
 |

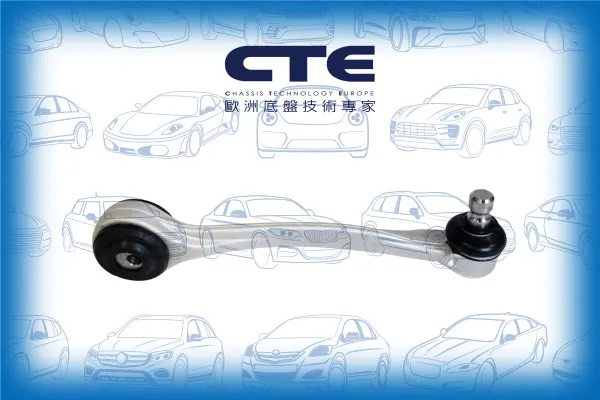

CS-3428R | FRONT AXLE, TOP RIGHT | ||
 |

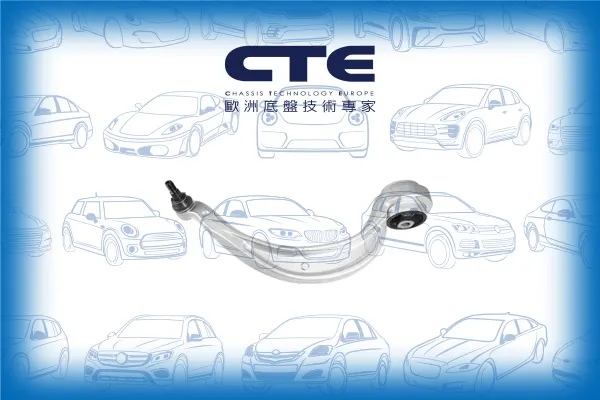

CS-3446L | FRONT AXLE LEFT; LOWER; REAR | 9A7 407 693 03 |
|
 |

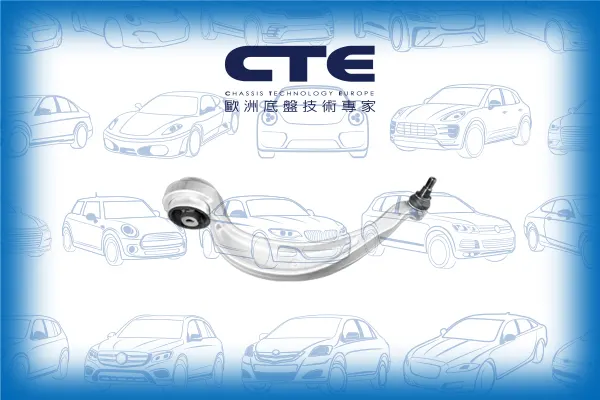

CS-3446R | FRONT AXLE RIGHT; LOWER; REAR | 9A7 407 694 03 |
|
 |
CSL19018D1 | FRONT AXLE LEFT; FRONT AXLE RIGHT (A= 170MM) | 4G0 411 317 4G0 411 317A 4G0 411 317C 4H0 411 317 4H0 411 317A 4H0 411 317C 4M0 411 317 4M0 411 317J 4M0 411 317L PAB 411 317A PAB 411 317B |
|
 |
CTE19004L | FRONT AXLE LEFT (C= M16X1.5) | 4G0 423 811A 8K0 407 253E 8K0 407 253F 8K0 422 817A 8K0 422 817B |
|
 |
CTE19004R | FRONT AXLE RIGHT (C= M16X1.5) | 4G0 423 812A 8K0 407 254E 8K0 407 254F 8K0 422 818A 8K0 422 818B |
| Model (Year) |
|---|
|
MACAN (95B) |
