CS-2014R
| Designation | Control Arm |
| Position | Front Axle; Right |
| OE No. | 1K0 407 152AC / 1K0 407 152AD / 1K0 407 152AK / 1K0 407 152AL / 1K0 407 152BF / 1K0 407 152M / 1K0 407 152R / 1K0 407 152T / 1KD 407 152 |
| Length | 364.2 mm |
| Width | 476.8 mm |
| Height | 78.5 mm |
| Net Weight | 5 kg |
A3 (8P1) VIN form 8P-5A113001
8P-5B009001 not for PR number UA0
UA2
2UA
2UB For Vehicles with Standard Suspension (IRON CASTING)
8P-5B009001 not for PR number UA0
UA2
2UA
2UB For Vehicles with Standard Suspension (IRON CASTING)
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19023 | REAR AXLE; BOTH SIDES; REAR; LOWER; OUTER | 1K0 505 553 1K0 505 553A 1KD 505 553 3C0 505 553 |
|
 |
CBH20016L | FRONT AXLE; LEFT; REAR | 1K0 199 231G 1K0 199 231J 1K0 199 231P |
|
 |
CBH20016R | FRONT AXLE; RIGHT; REAR | 1K0 199 232G 1K0 199 232J 1K0 199 232P |
|
 |
CBH20017 | FRONT AXLE LEFT; INNER; FRONT; FRONT AXLE RIGHT | 1K0 407 182 1K0 407 182A 1K0 407 182F 1KD 407 182 5Q0 407 182 5Q0 407 182A |
|
 |
CBH20021 | REAR AXLE LEFT; LOWER; REAR AXLE RIGHT | 1K0 501 541C 1K0 505 171B 1K0 505 171C 1K0 505 173C 7N0 505 311 7N0 505 311SK |
|
 |
CBH20022 | REAR AXLE LEFT; OUTER; REAR AXLE RIGHT | 1K0 505 543A |
|
 |

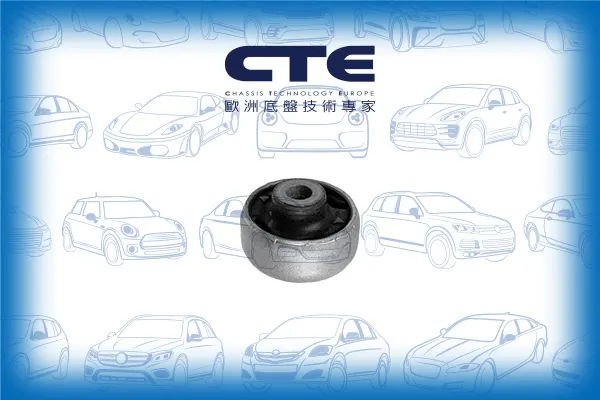

CBH20035 | FRONT AXLE; BOTH SIDES; REAR | 1K0 407 183M 1K0 407 183P 5C0 407 183A |
|
 |
CBJ20008LA | FRONT AXLE LEFT | 1K0 407 365B 1K0 407 365C 1K0 407 365E 1KD 407 365 5Q0 073 365A 5Q0 407 365A 5WA 407 365 |
|
 |
CBJ20008RA | FRONT AXLE RIGHT | 1K0 407 366B 1K0 407 366C 1K0 407 366E 1KD 407 366 5Q0 073 366A 5Q0 407 366A 5WA 407 366 |
|
 |
CRE20013 | FRONT AXLE LEFT; FRONT AXLE RIGHT (D= M16X1.5 , C= M16X1.5) | 1K0 423 810A 1K0 423 810E 3C0 423 810A |
|
 |
CS-1932 | REAR AXLE LEFT; REAR AXLE RIGHT; LOWER; REAR | 1K0 505 311 1K0 505 311 AA 1K0 505 311 H 1K0 505 311 J 1K0 505 311 R 1K0 505 311 S 1K0 505 311 T 1K0 505 311AB |
|
 |
CS-2014L | FRONT AXLE; LEFT | 1K0 407 151AC 1K0 407 151AD 1K0 407 151AK 1K0 407 151AL 1K0 407 151BF 1K0 407 151M 1K0 407 151R 1K0 407 151T 1KD 407 151 |
|
 |
CS-2014R | FRONT AXLE; RIGHT | 1K0 407 152AC 1K0 407 152AD 1K0 407 152AK 1K0 407 152AL 1K0 407 152BF 1K0 407 152M 1K0 407 152R 1K0 407 152T 1KD 407 152 |
|
 |
CS-2024L | FRONT AXLE; LEFT | 1K0 407 151AC 1K0 407 151AD 1K0 407 151AK 1K0 407 151AL 1K0 407 151BF 1K0 407 151M 1K0 407 151R 1K0 407 151T 1KD 407 151 CS-2014L+CBJ20008LA |
|
 |
CS-2024R | FRONT AXLE; RIGHT | 1K0 407 152AC 1K0 407 152AD 1K0 407 152AK 1K0 407 152AL 1K0 407 152BF 1K0 407 152M 1K0 407 152R 1K0 407 152T 1KD 407 152 CS-2014R+CBJ20008RA |
|
 |
CS-2027L | REAR AXLE LEFT; FRONT | 1K0 501 529E 1K0 501 529F 7N0 501 529 |
|
 |
CS-2027R | REAR AXLE; FRONT; RIGHT | 1K0 501 530B 1K0 501 530C 7N0 501 530 |
|
 |
CS-2029L | FRONT AXLE LEFT; LOWER | 1K0 407 151 AA 1K0 407 151 AB 1K0 407 151 AE 1K0 407 151 AH 1K0 407 151 BC 1K0 407 151 BD 1K0 407 151 N 1K0 407 151 P 1K0 407 151Q |
|
 |
CS-2029R | FRONT AXLE RIGHT; LOWER | 1K0 407 152 AA 1K0 407 152 AB 1K0 407 152 AE 1K0 407 152 AH 1K0 407 152 BC 1K0 407 152 BD 1K0 407 152 N 1K0 407 152 P 1K0 407 152Q |
|
 |

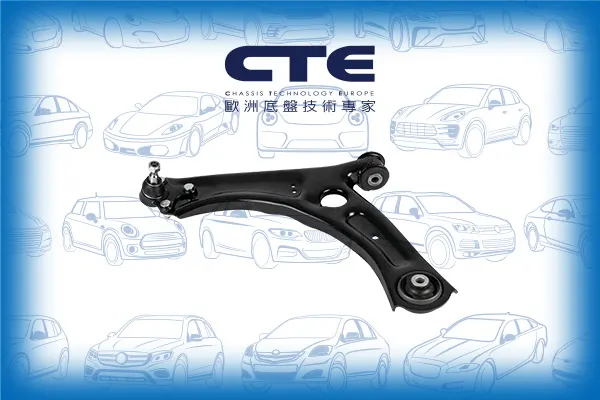

CS-2043L | FRONT AXLE; LEFT | 1K0 407 151BB 1K0 407 151BE 1K0 407 151BG 1K0 407 151BL |
|
 |

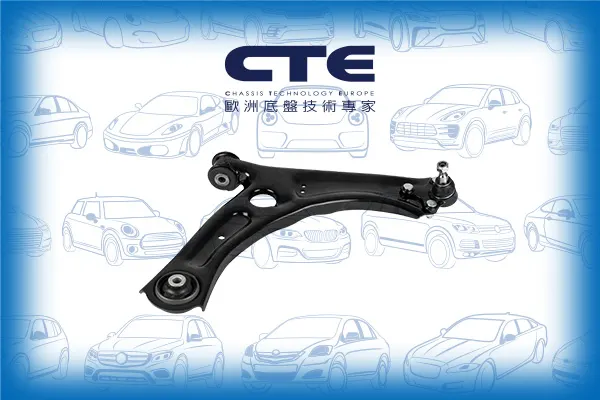

CS-2043R | FRONT AXLE; RIGHT | 1K0 407 152BB 1K0 407 152BE 1K0 407 152BG 1K0 407 152BL |
|
 |
CSL20014D1 | FRONT AXLE LEFT; FRONT AXLE RIGHT (A= 334MM) | 1K0 411 315B 1K0 411 315D 1K0 411 315E 1K0 411 315G 1K0 411 315J 1K0 411 315K 1K0 411 315P 1K0 411 315R 1KD 411 315 1KD 411 315A 3QG 411 315A 5Q0 411 315 5Q0 411 315A 5Q0 411 315B 5Q0 411 315C 5Q0 411 315D 5QD 411 315 5QM 411 315 |
|
 |
CTE20001L | FRONT AXLE LEFT (C= M16X1.5) | 1K0 423 803 A 1K0 423 811A 1K0 423 811B 1K0 423 811C 1K0 423 811E 1K0 423 811F 1K0 423 811G 1K0 423 811J 1K0 423 811K 1K1 423 051 CL 1K1 423 051 CN 1K1 423 070 X 2QB 423 811 3C0 423 811 B |
|
 |
CTE20001R | FRONT AXLE LEFT (C= M16X1.5) | 1K0 423 804 A 1K0 423 812A 1K0 423 812B 1K0 423 812C 1K0 423 812E 1K0 423 812F 1K0 423 812G 1K0 423 812J 1K0 423 812K 1K1 423 051 CL 1K1 423 051 CN 1K1 423 070 X 2QB 423 812 3C0 423 812 B |
| Model (Year) |
|---|
|
A3 (8P1) | A3 / S3 A3 Convertible (8P7) A3 Sportback (8PA) |
| Model (Year) |
|---|
|
ALTEA (5P1) ALTEA XL (5P5, 5P8) LEON (1P1) TOLEDO III (5P2) |
| Model (Year) |
|---|
|
OCTAVIA II (1Z3) OCTAVIA II Combi (1Z5) SUPERB II (3T4) SUPERB II Estate (3T5) |
| Model (Year) |
|---|
|
CADDY III Box Body/MPV (2KA, 2KH, 2CA, 2CH) CADDY III MPV (2KB, 2KJ, 2CB, 2CJ) EOS (1F7, 1F8) GOLF PLUS V (5M1, 521) GOLF V (1K1) GOLF V Variant (1K5) | BORA / JETTA GOLF VI (5K1) GOLF VI Convertible (517) GOLF VI Variant (AJ5) | JETTA /JETTA WAGON JETTA III (1K2) SCIROCCO III (137, 138) TOURAN (1T1, 1T2) |
