CS-2101R
| Designation | Control Arm |
| Position | Front Axle; Lower; Right |
| OE No. | 124 330 39 07 / 201 330 39 07 / A 124 330 39 07 / A 201 330 39 07 |
| Length | 422.2 mm |
| Width | 429.4 mm |
| Height | 96.5 mm |
| Net Weight | 5.78 kg |
(W124) for vehicles with sports suspension
(W201) for vehicles without sports suspension
(W201) for vehicles without sports suspension
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21001 | FRONT AXLE; LOWER; BOTH SIDES; FRONT | 201 333 51 14 |
|
 |

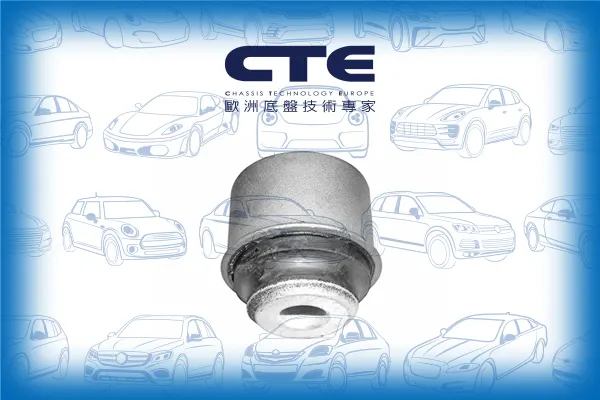

CBH21002 | FRONT AXLE; LOWER; BOTH SIDES; REAR | 201 333 45 14 |
|
 |
CBH21003 | FRONT AXLE LEFT; FRONT AXLE RIGHT | 201 330 00 75 |
|
 |
CBH21013 | REAR AXLE LEFT; REAR AXLE RIGHT | 124 352 90 65 A 124 352 90 65 |
|
 |
CBH21014 | REAR AXLE LEFT; REAR AXLE RIGHT | 124 350 05 75 124 352 35 65 A 124 350 01 29 A 124 350 05 75 |
|
 |
CBH21015 | REAR AXLE; BOTH SIDES; LOWER | 124 352 43 65 201 352 87 65 201 352 88 65 A 124 352 43 65 A 201 352 87 65 A 201 352 88 65 |
|
 |
CBJ21001 | LOWER; FRONT AXLE RIGHT; FRONT AXLE LEFT | 124 333 01 27 124 333 03 27 A 124 333 01 27 A 124 333 03 27 |
|
 |
CS-2101L | FRONT AXLE; LOWER; LEFT | 124 330 38 07 201 330 38 07 A 124 330 38 07 A 201 330 38 07 |
|
 |
CS-2101R | FRONT AXLE; LOWER; RIGHT | 124 330 39 07 201 330 39 07 A 124 330 39 07 A 201 330 39 07 |
|
 |
CS-2102L | FRONT AXLE; LOWER; LEFT | 124 330 30 07 201 330 40 07 A 124 330 30 07 |
|
 |
CS-2102R | FRONT AXLE; LOWER; RIGHT | 124 330 31 07 201 330 41 07 A 124 330 31 07 |
|
 |
CS-2105L | REAR AXLE LEFT; LEFT | 124 350 22 06 124 350 26 06 124 350 70 06 124 350 76 06 129 350 04 06 210 350 16 06 210 350 24 06 A 124 350 22 06 A 124 350 26 06 A 124 350 70 06 A 124 350 76 06 A 129 350 04 06 A 210 350 16 06 |
|
 |
CS-2105R | REAR AXLE RIGHT; RIGHT | 124 350 23 06 124 350 27 06 124 350 71 06 124 350 77 06 129 350 05 06 129 350 09 06 201 350 33 06 210 350 17 06 210 350 25 06 A 124 350 23 06 A 124 350 27 06 A 124 350 71 06 A 124 350 77 06 A 129 350 05 06 A 129 350 09 06 A 201 350 33 06 A 210 350 17 06 |
|
 |
CS-2106 | UPPER; REAR AXLE LEFT; FRONT; REAR AXLE RIGHT | 124 350 42 06 201 350 39 06 201 350 43 06 201 350 44 06 201 350 47 06 201 350 56 06 210 350 33 06 A 124 350 42 06 A 201 350 39 06 A 201 350 43 06 A 201 350 44 06 A 201 350 47 06 A 201 350 56 06 A 210 350 33 06 K05099785AA |
|
 |
CS-2107 | REAR AXLE | 124 350 01 29 201 350 00 29 210 350 00 29 210 350 38 06 |
|
 |
CS-2108 | REAR AXLE; LOWER; REAR | 201 350 27 53 201 350 29 53 201 350 32 53 201 359 19 53 210 350 06 53 210 350 09 53 210 350 14 53 210 350 18 53 A 201 350 19 53 A 201 350 27 53 A 201 350 32 53 A 210 350 06 53 A 210 350 14 53 A 210 350 18 53 |
|
 |
CSL21005 | REAR AXLE LEFT; REAR AXLE RIGHT (A= 197MM) | 124 320 02 64 124 320 02 89 124 320 04 89 124 326 01 16 A 124 320 02 89 |
| Model (Year) |
|---|
|
124 Saloon (W124) 190 (W201) E-CLASS (W124) E-CLASS Convertible (A124) E-CLASS Coupe (C124) |
