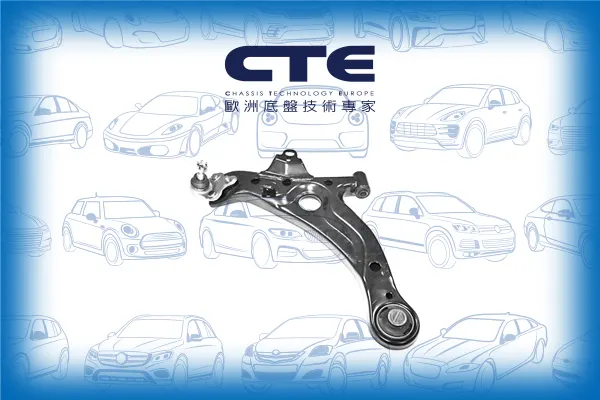

CS-237L
| Designation | Control Arm |
| Position | Front Axle; Lower; Left; outer |
| OE No. | 48069-05030 / 48069-05031 / 48069-05040 / 48069-05041 / 48069-05050 / 48069-05060 / 7476134 / CS-235L+CBJ02012A |
| Length | 460 mm |
| Width | 404.4 mm |
| Height | 100 mm |
| Net Weight | 4.6 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

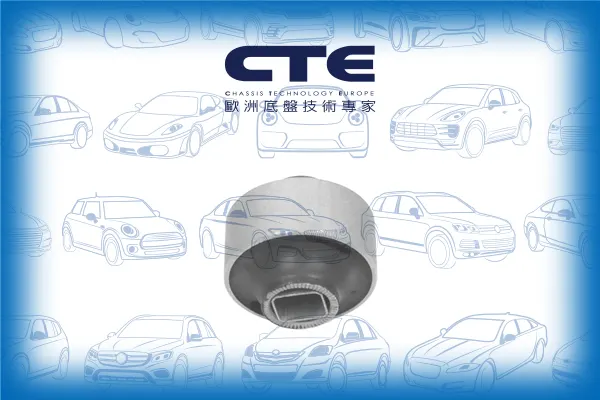

CBH02022 | LOWER FRONT AXLE; REAR | 48061-05010 48655-20220 |
|
 |

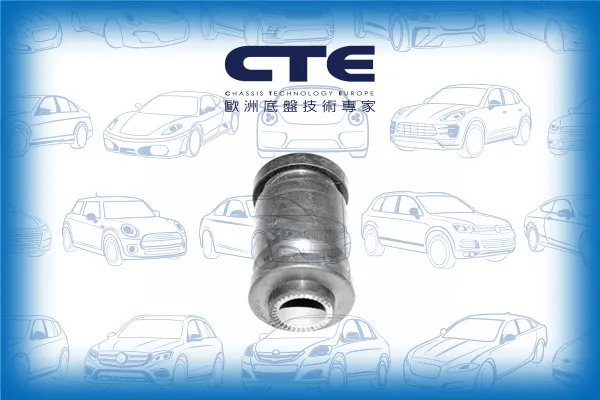

CBH02023 | REAR; LOWER FRONT AXLE | 48068-05050 48068-20220 48068-20221 48069-05050 48069-20220 48069-20221 48654-05040 |
|
 |
CBJ02012A | FRONT AXLE; LOWER | 1014026395 1014026396 1014029082 1064000093 1064001876 23-010-072 4017020100 4017020200 4017020300 4017031900 4017032000 43330-02020 43330-02040 43330-05020 43330-09030 4333009040 43330-09040 43330-09060 43330-09130 43330-09190 43330-19095 43330-26265 433 |
|
 |
CRE02073 | FRONT AXLE LEFT; FRONT AXLE RIGHT (D= M14X1.5 , C= M16X1.5) | 45503-05020 45503-05050 |
|
 |

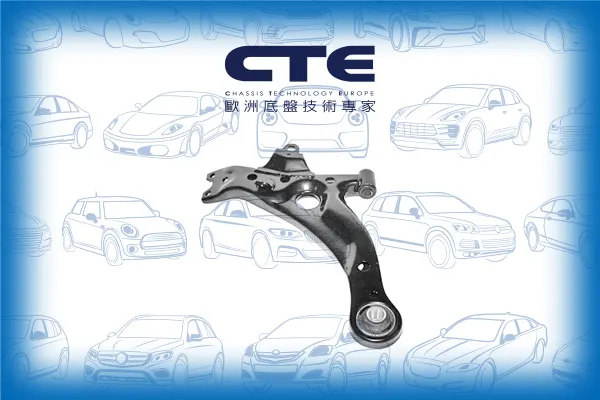

CS-235L | FRONT AXLE; LOWER; LEFT; OUTER | 48069-05030 48069-05031 48069-05040 48069-05041 48069-05050 7476134 |
|
 |

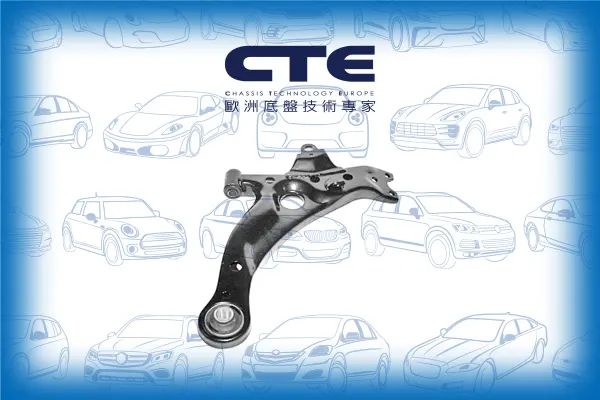

CS-235R | FRONT AXLE; LOWER; RIGHT; OUTER | 48068-05030 48068-05031 48068-05040 48068-05041 48068-05050 7476133 |
|
 |
CS-237L | FRONT AXLE; LOWER; LEFT; OUTER | 48069-05030 48069-05031 48069-05040 48069-05041 48069-05050 48069-05060 7476134 CS-235L+CBJ02012A |
|
 |

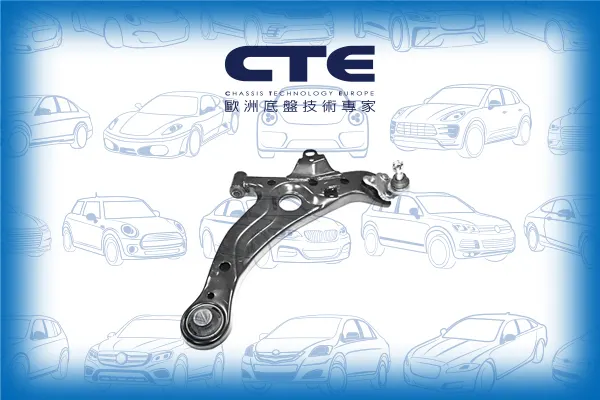

CS-237R | FRONT AXLE; LOWER; RIGHT; OUTER | 48068-05030 48068-05031 48068-05040 48068-05041 48068-05050 48068-05060 7476133 CS-235R+CBJ02012A |
|
 |
CSL02031 | FRONT AXLE LEFT; FRONT AXLE RIGHT (A= 70MM) | 48820-20010 |
|
 |
CSL02036L | FRONT AXLE LEFT (A= 70MM) | 48810-05010 48810-05011 48810-05012 48810-20020 48810-44010 |
|
 |
CSL02036R | FRONT AXLE RIGHT; LOWER; OUTER (A= 70MM) | 48820-05011 48820-05012 48820-20040 48820-44010 |
|
 |

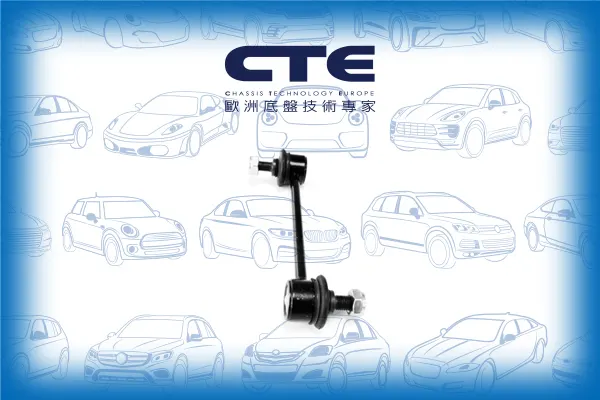

CSL02064 | REAR AXLE LEFT; REAR AXLE RIGHT (A= 140MM) | 48830-05020 |
| Model (Year) |
|---|
|
AVENSIS (_T22_) AVENSIS Estate (_T22_) AVENSIS Liftback (_T22_) |
