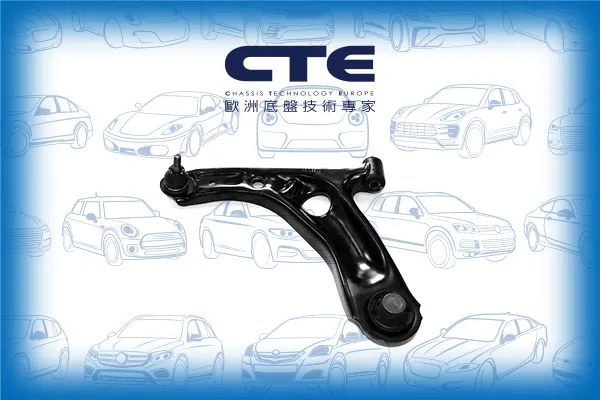

CS-2504L
| Designation | Control Arm |
| Position | Front Axle Left; Lower |
| OE No. | 16 073 046 80 / 16 357 752 80 / 3520.Q2 / 48069-0H010 |
| Length | 330 mm |
| Width | 398 mm |
| Height | 90 mm |
| Net Weight | 2.51 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH02014 | FRONT AXLE; BOTH SIDES; FRONT | 48654-16110 48655-0H010 |
|
 |
CBH02050 | BEHIND THE AXLE; LOWER FRONT AXLE | 48068-59075 48069-59075 48654-0D030 48654-0D060 48654-52050 48654-74011 |
|
 |

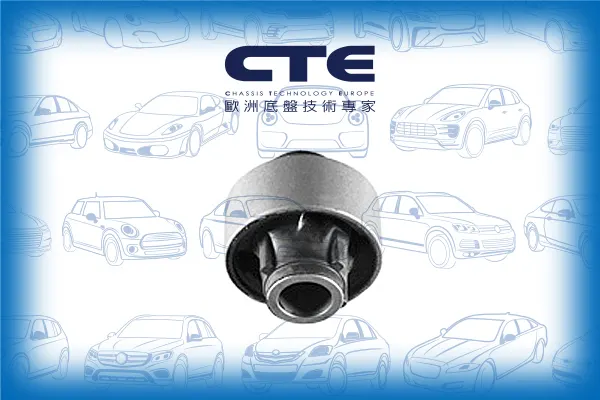

CBH25007 | FRONT AXLE; BOTH SIDES; REAR | 3520.Q2 3521.L3 48068-0H010 48069-0H010 48654-0H010 |
|
 |
CRE06037 | FRONT AXLE LEFT; FRONT AXLE RIGHT | D8521-1HJ0A |
|
 |
CS-2504L | FRONT AXLE LEFT; LOWER | 16 073 046 80 16 357 752 80 3520.Q2 48069-0H010 |
|
 |

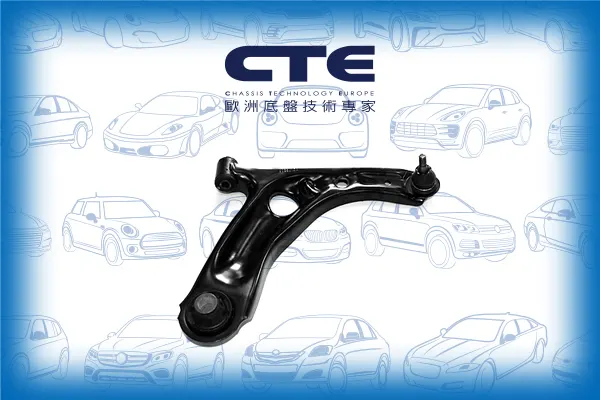

CS-2504R | FRONT AXLE RIGHT; LOWER | 16 073 047 80 16 357 750 80 3521.L3 48068-0H010 |
|
 |
CS-2510L | FRONT AXLE LEFT; LOWER; OUTER | 1014013005 16 141 914 80 48069-0H020 48069-0H021 B0 007 702 80 BYDLK-2904100 |
|
 |
CS-2510R | FRONT AXLE RIGHT; LOWER; OUTER | 1014013007 16 141 916 80 48068-0H020 48068-0H021 B0 007 701 80 BYDLK-2904200 |
|
 |
CS47012L | LEFT FRONT | ||
 |
CS47012R | RIGHT FRONT | ||
 |
CSL02068 | FRONT AXLE LEFT; FRONT AXLE RIGHT | 48817-0D010 48817-52010 48817-52011 48819-52010 48819-52020 48819-70010 5091.1 5091.10 5094.A7 6822.R9 6822.S0 6822.TV 90948-02178 90948-02179 94182-10800 |
| Model (Year) |
|---|
|
C1 (PM_, PN_) |
| Model (Year) |
|---|
|
107 (PM_, PN_) |
| Model (Year) |
|---|
|
AYGO (_B1_) |
