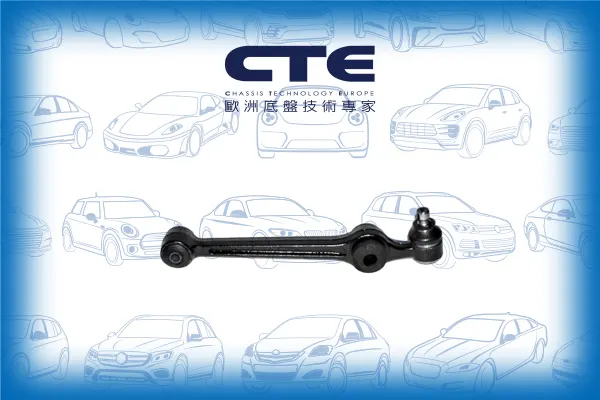

CS-307
| Designation | Control Arm |
| Position | Front Axle Left; Front Axle Right |
| OE No. | KKY01-34-310 / KKYO-IE34-310 |
| Length | 337.36 mm |
| Width | 56 mm |
| Height | 82.61 mm |
| Net Weight | 1.3 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

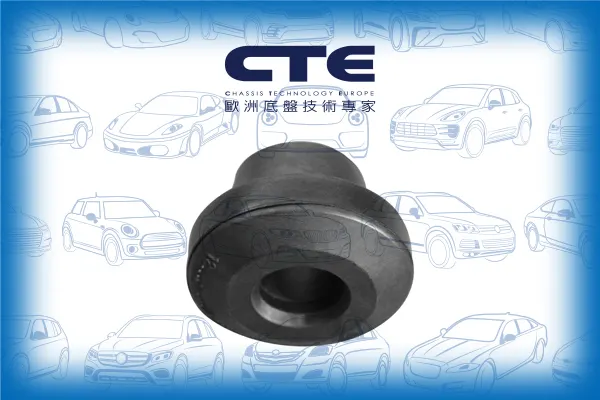

CBH03008 | OUTER; LOWER FRONT AXLE | D031-34-310A D031-34-320A D061-34-300 D061-34-350 |
|
 |

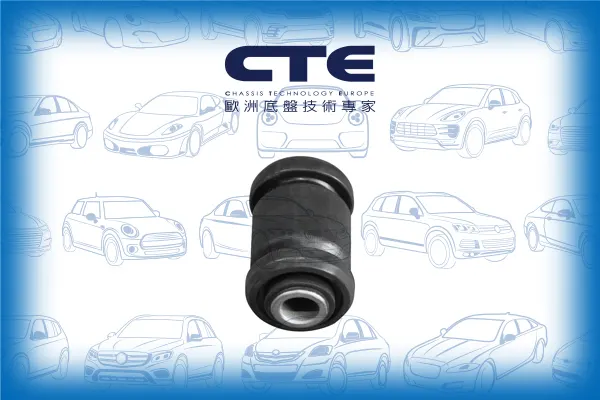

CBH03009 | FRONT AXLE; CENTRE | KKY01-34-310 KKYO-IE34-310 |
|
 |

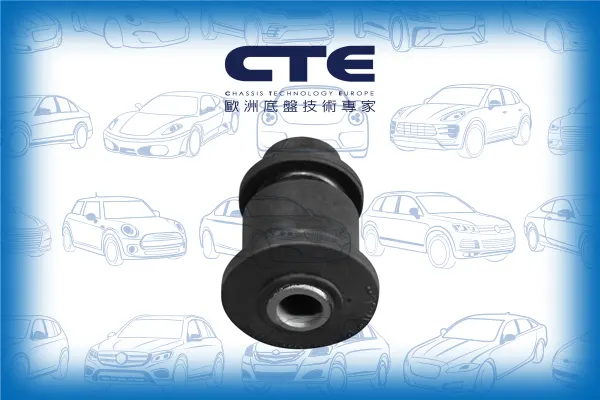

CBH03040 | INNER; LOWER FRONT AXLE | D031-34-310A D031-34-320A D061-34-300 D061-34-350 |
|
 |
CS-307 | FRONT AXLE LEFT; FRONT AXLE RIGHT | KKY01-34-310 KKYO-IE34-310 |
|
 |

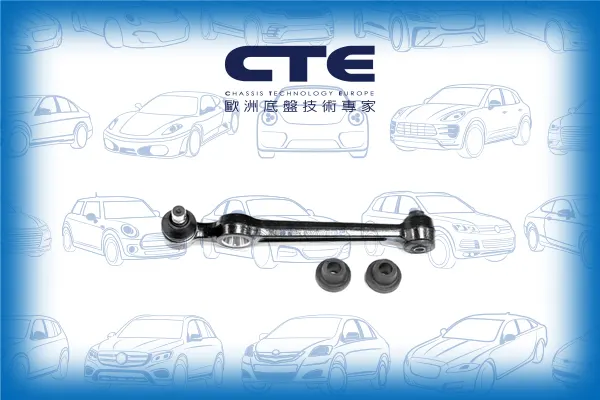

CS-334L | FRONT AXLE; LOWER; LEFT; RIGHT | D031-34-320A |
|
 |

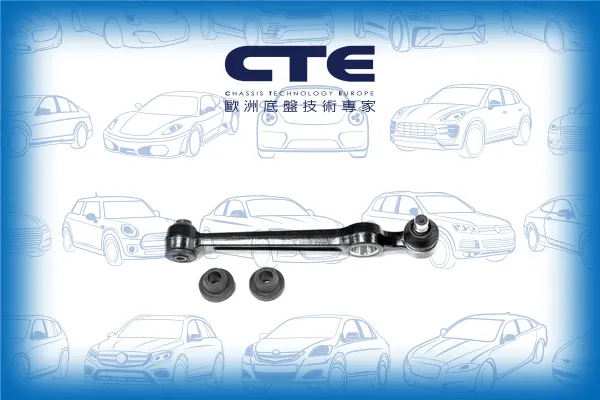

CS-334R | FRONT AXLE LEFT; FRONT AXLE RIGHT | D031-34-310A |
|
 |
CTE03009 | FRONT AXLE LEFT; FRONT AXLE RIGHT (C= M12X1.25) | 009204751 009210168 009210351 09204751 09210168 09210351 47 01 744 47 05 655 47 05 716 47 09 195 485204A00B 48810-60810 48810-60J00 48810-63J00 48810-83E00 48810-83E00-000 48810-83E01 48810-83E01-000 48810-83E02 48810-83E02-000 48810-84M00 48810-84M00-000 |
| Model (Year) |
|---|
|
121 I (DA) |
