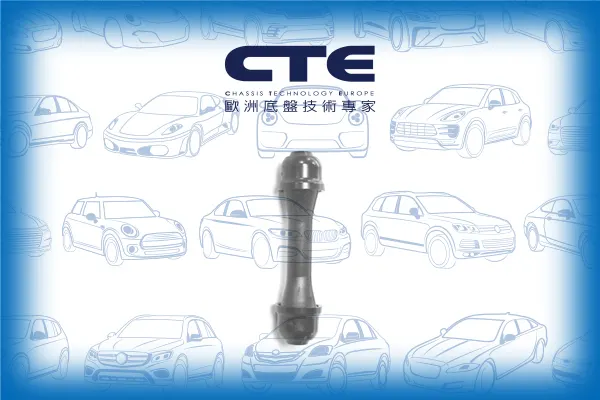

CSL03056
| Designation | Stabilizer Link |
| Position | Front Axle Left; Front Axle Right (A= 126.4mm) |
| OE No. | 3736028 / 3933468 / 4041494 / 4755562 / 6L34-5495-AA / F65A5K483CC / F75A-5C491-BA |
| Length | 126 mm |
| Width | 32 mm |
| Height | 32 mm |
| Net Weight | 0.04 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH03055 | FRONT AXLE; BOTH SIDES; REAR | 1495717 4042024 4372132 4540787 6C16 3A262 AA YC15 3A262 AD YC15 3A262 AE YC15 3A262 AF |
|
 |
CRE03050L | FRONT AXLE; DRIVER SIDE (D= M16X1.5 , C= M16X1.5) | 1370709 4059923 4602028 6C11-3L519-AA YC15-3L519-AA YC15-3L519-AB |
|
 |
CRE03050R | FRONT AXLE; PASSENGER SIDE (D= M16X1.5 , C= M20X1.5) | 1370710 4059924 4577976 6C11-3L519-BA YC15-3L519-BA YC15-3L519-BB |
|
 |
CS-345L | FRONT AXLE; LOWER; LEFT; OUTER | 1438318 1438350 1495667 1553251 1735890 4042023 4140394 4164521 4372131 4540775 6C113A053EA 6C113A053EB 6C113A053FA 6C113A053FB 6C113A053FC YC153A053AH YC153A053AJ YC153A053AK YC153A053AL YC153A053AM |
|
 |
CS-345R | FRONT AXLE; LOWER; RIGHT; OUTER | 1438315 1438316 1495666 1553246 1735889 4042022 4140393 4164518 4372130 4540774 6C113A042EA 6C113A052EA 6C113A052EB 6C113A052FC YC153A052AH YC153A052AJ YC153A052AL YC153A052AM |
|
 |
CSL03056 | FRONT AXLE LEFT; FRONT AXLE RIGHT (A= 126.4MM) | 3736028 3933468 4041494 4755562 6L34-5495-AA F65A5K483CC F75A-5C491-BA |
|
 |

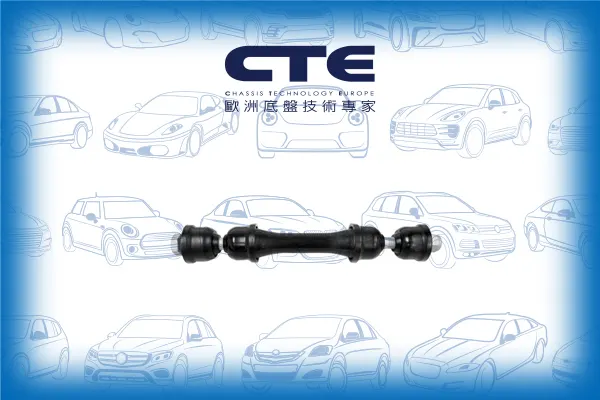

CSL03063 | FRONT AXLE LEFT; FRONT AXLE RIGHT | 3736028 3933468 4041494 4755562 6L34-5495-AA F65A5K483CC F75A-5C491-BA |
|
 |
CSL03065 | FRONT AXLE LEFT; FRONT AXLE RIGHT | 1495685 1763714 2033148 3C11-3B438-AC 3C11-3B438-AD 4519467 BK21-3B438-AA BK21-3B438-AB |
| Model (Year) |
|---|
|
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) TRANSIT Platform/Chassis (FM_ _, FN_ _) TRANSIT Van (FA_ _) |
