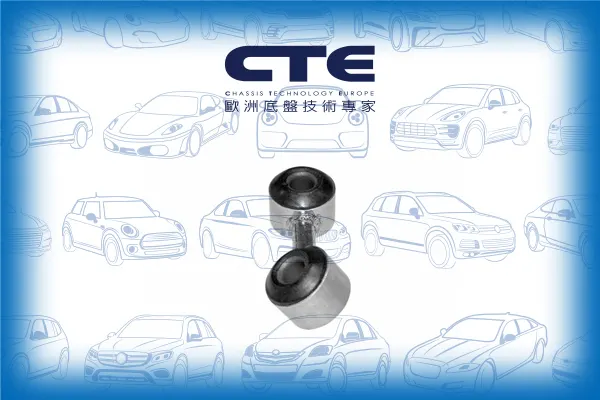

CSL19004R
| Designation | Stabilizer Link |
| Position | Rear Axle Right (A= 61mm) |
| OE No. | 4D0 505 548C / 4E0 505 548A / 4E0 505 548L |
| Length | 96 mm |
| Width | 40.8 mm |
| Height | 38.6 mm |
| Net Weight | 0.24 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19008 | FRONT AXLE; LOWER; FRONT; INNER; BOTH SIDES | 4D0 407 182E 4D0 407 182G 8E0 407 182A |
|
 |
CBH19009 | FRONT AXLE; LOWER; FRONT; OUTER; BOTH SIDES | 4D0 407 181F 4D0 407 181H |
|
 |

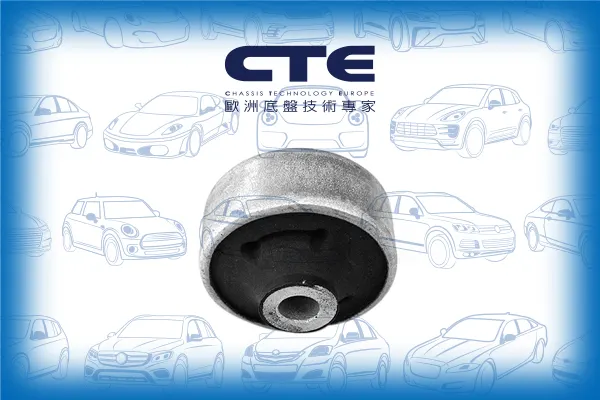

CBH19013 | FRONT AXLE LEFT; UPPER; FRONT; FRONT AXLE RIGHT | 4D0 407 516A 4D0 407 516C |
|
 |
CS-1904 | FRONT AXLE LEFT; LOWER; FRONT; FRONT AXLE RIGHT | 4D0 407 151A 4D0 407 151B 4D0 407 151C 4D0 407 151D 4D0 407 151E 4D0 407 151F 4D0 407 151G 4D0 407 151H 4D0 407 151J 4D0 407 151K 4D0 407 151N 4D0 407 151P 4D0 407 155P 8D0 407 151D 8D0 407 151E 8D0 407 151F |
|
 |

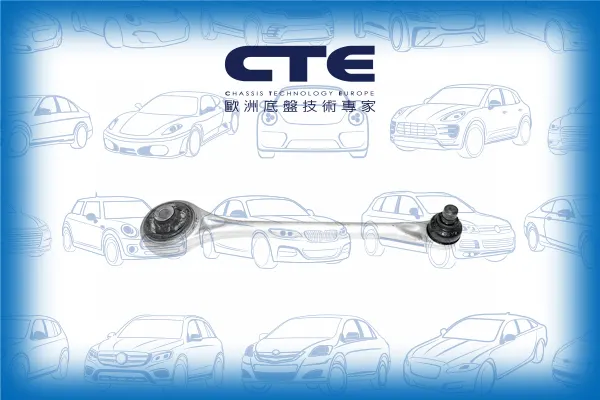

CS-1910 | FRONT AXLE; UPPER | 4D0 407 505A 4D0 407 505B 4D0 407 505D 4D0 407 505F 4D0 407 505H 4D0 407 505J |
|
 |
CS-1915 | FRONT AXLE; LOWER; BOTH SIDES; FRONT | 4B0 407 151 4B0 407 151C 4B3 407 151A 4B3 407 151C 4B3 407 151E 4B3 407 151F 4B3 407 151K |
|
 |

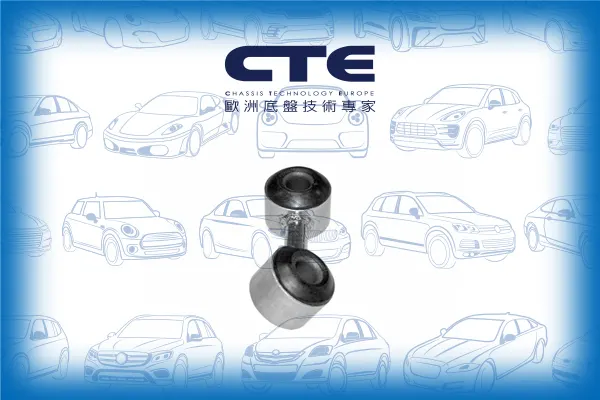

CSL19004L | REAR AXLE LEFT (A= 61MM) | 4D0 505 547C 4E0 505 547A 4E0 505 547L |
|
 |
CSL19004R | REAR AXLE RIGHT (A= 61MM) | 4D0 505 548C 4E0 505 548A 4E0 505 548L |
|
 |

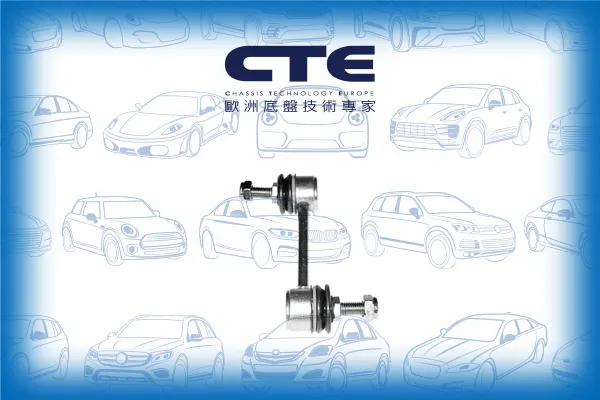

CSL19005 | REAR AXLE (A= 119MM) | 4D0 505 465D |
|
 |
CSL19010 | FRONT AXLE (A= 90MM) | 4D0 411 317D 4D0 411 317K |
|
 |
CSL19010A | FRONT AXLE (A= 90MM) | 4D0 411 317D 4D0 411 317K |
|
 |

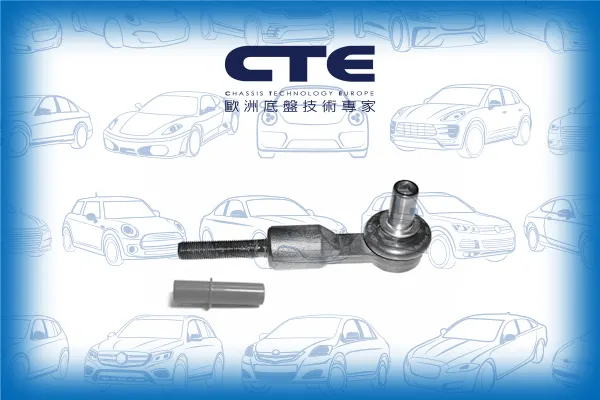

CTE19001 | FRONT AXLE LEFT; FRONT AXLE RIGHT (C= M14X1.5) | 4D0 419 811A |
|
 |
CTE19003 | FRONT AXLE LEFT; FRONT AXLE RIGHT (C= M14X1.5) | 8E0 419 811B |
| Model (Year) |
|---|
|
A8 D2 (4D2, 4D8) | A8 / S8 |
