CSL21022L
| Designation | Stabilizer Link |
| Position | Front Axle Left (A= 232mm) |
| OE No. | 204 320 07 89 / A 204 320 07 89 |
| Length | 329.9 mm |
| Width | 44.7 mm |
| Height | 103.7 mm |
| Net Weight | 0.38 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH21030 | REAR AXLE LOWER; UPPER; LOWER; FRONT | 204 350 00 29 204 350 27 06 204 352 12 05 205 350 63 03 230 350 35 06 230 350 36 06 A 204 350 00 29 A 204 350 27 06 A 204 352 12 05 A 205 350 63 03 |
|
 |
CBH21034 | FRONT AXLE; BOTH SIDES | 204 333 03 14 A 204 333 03 14 |
|
 |
CBH21035 | FRONT AXLE; LOWER; BOTH SIDES; FRONT | 204 333 11 14 A 204 333 11 14 |
|
 |
CBH21060 | REAR AXLE; BOTH SIDES; LOWER; FRONT; OUTER | 204 350 05 53 204 350 06 53 205 350 65 03 205 350 66 03 A 204 350 05 53 A 204 350 06 53 A 205 350 65 03 A 205 350 66 03 |
|
 |
CBH21061 | REAR AXLE; BOTH SIDES; LOWER; FRONT; OUTER | 204 350 05 53 204 350 06 53 205 350 65 03 205 350 66 03 A 204 350 05 53 A 204 350 06 53 A 205 350 65 03 A 205 350 66 03 |
|
 |
CBH21062 | REAR AXLE; LEFT; RIGHT; UPPER; INNER | 204 350 15 06 204 350 16 06 205 350 61 03 205 350 62 03 A 204 350 15 06 A 204 350 16 06 A 205 350 61 03 A 205 350 62 03 |
|
 |
CBH21063 | REAR AXLE; LEFT; RIGHT; UPPER; INNER | 204 350 15 06 204 350 16 06 205 350 61 03 205 350 62 03 A 204 350 15 06 A 204 350 16 06 A 205 350 61 03 A 205 350 62 03 |
|
 |
CBH21067 | REAR AXLE; BOTH SIDES; UPPER; FRONT; INNER | 204 350 21 06 204 350 22 06 A 204 350 21 06 A 204 350 22 06 |
|
 |
CBH21068 | REAR AXLE; BOTH SIDES; UPPER; FRONT; INNER | 204 350 21 06 204 350 22 06 A 204 350 21 06 A 204 350 22 06 |
|
 |
CRE21003 | FRONT AXLE LEFT; FRONT AXLE RIGHT (D= M14X1.5 , C= M16X1.5) | 204 338 03 15 204 338 05 15 A 204 338 03 15 A 204 338 05 15 |
|
 |

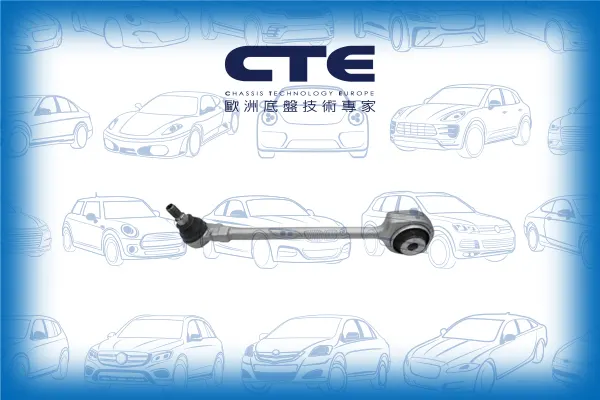

CS-2136L | FRONT AXLE LEFT; LOWER; REAR | 204 330 29 11 A 204 330 29 11 |
|
 |
CS-2136R | FRONT AXLE RIGHT; LOWER; REAR | 204 330 30 11 A 204 330 30 11 |
|
 |

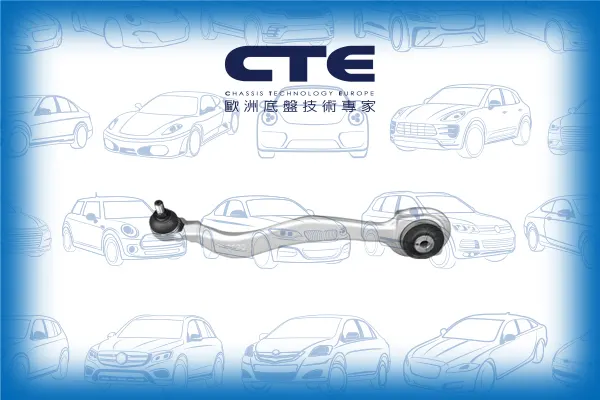

CS-2139L | FRONT AXLE LEFT; LOWER; FRONT | 204 330 73 11 204 330 90 11 A 204 330 73 11 A 204 330 90 11 |
|
 |

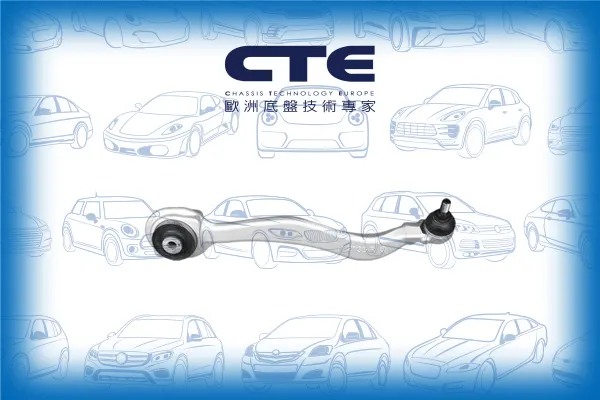

CS-2139R | FRONT AXLE RIGHT; LOWER; FRONT | 204 330 74 11 204 330 91 11 A 204 330 74 11 A 204 330 91 11 |
|
 |
CS-2167L | REAR AXLE LEFT; UPPER; FRONT | 204 350 21 06 204 350 33 06 A 204 350 21 06 A 204 350 33 06 |
|
 |
CS-2167R | REAR AXLE RIGHT; UPPER; FRONT | 204 350 22 06 204 350 34 06 A 204 350 22 06 A 204 350 34 06 |
|
 |
CS-2168L | REAR AXLE LEFT | 204 350 05 53 205 350 65 03 A 204 350 05 53 A 205 350 65 03 |
|
 |
CS-2168R | REAR AXLE RIGHT | 204 350 06 53 205 350 66 03 A 204 350 06 53 A 205 350 66 03 |
|
 |
CS-2169L | REAR AXLE LEFT; UPPER; REAR | 204 350 15 06 204 350 30 06 205 350 61 03 A 204 350 15 06 A 204 350 30 06 A 205 350 61 03 |
|
 |
CS-2169R | REAR AXLE RIGHT; UPPER; REAR | 204 350 16 06 204 350 31 06 205 350 62 03 A 204 350 16 06 A 204 350 31 06 A 205 350 62 03 |
|
 |
CS-2170 | REAR AXLE | 204 350 00 29 204 350 27 06 204 352 12 05 205 350 63 03 A 204 350 00 29 A 204 350 27 06 A 204 352 12 05 A 205 350 63 03 |
|
 |
CSL21022L | FRONT AXLE LEFT (A= 232MM) | 204 320 07 89 A 204 320 07 89 |
|
 |
CSL21022R | FRONT AXLE RIGHT (A= 232MM) | 204 320 22 89 A 204 320 22 89 |
|
 |
CSL21023L | REAR AXLE LEFT | 204 320 05 89 A 204 320 05 89 |
|
 |
CSL21023R | REAR AXLE RIGHT | 204 320 04 89 A 204 320 04 89 |
|
 |

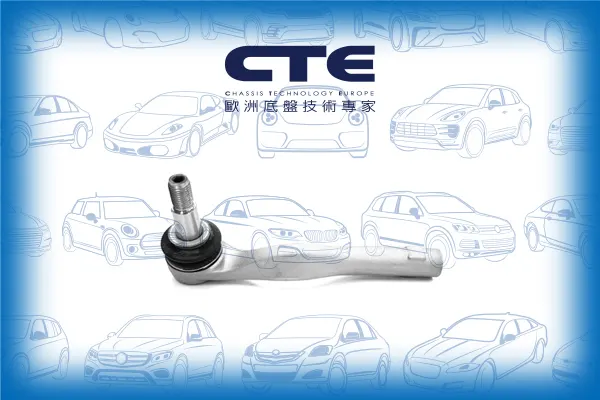

CTE21006L | FRONT AXLE LEFT (C= M14X1.5) | 204 330 33 03 A 204 330 33 03 |
|
 |

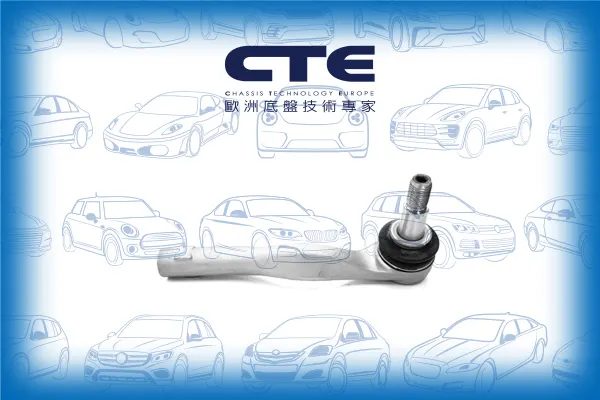

CTE21006R | FRONT AXLE RIGHT (C= M14X1.5) | 204 330 34 03 A 204 330 34 03 |
| Model (Year) |
|---|
|
C-CLASS (W204) C-CLASS Coupe (C204) C-CLASS T-Model (S204) E-CLASS Coupe (C207) GLK-CLASS (X204) |
