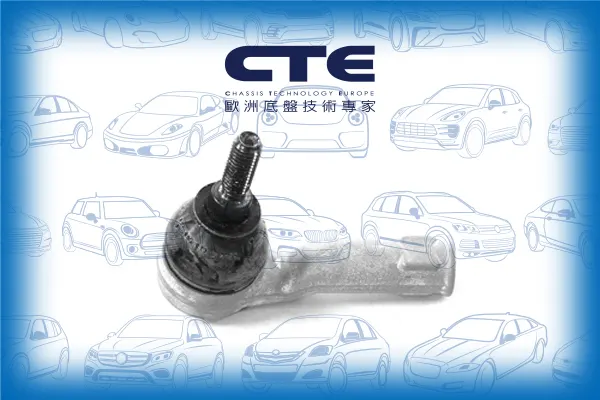

CTE31005
| Designation | Tie Rod End |
| Position | Front Axle Left; Front Axle Right (C= M16X1.5) |
| OE No. | LR010675 / QJB500040 |
| Length | 128.4 mm |
| Width | 51 mm |
| Height | 99 mm |
| Net Weight | 0.6 kg |
LAND ROVER SPORT I (L320) vehicle Identification Number (VIN) from 9A999999.
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |

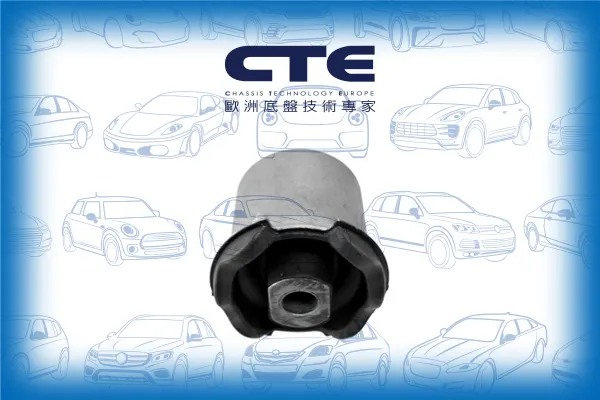

CBH31007 | FRONT AXLE LEFT; LOWER; FRONT AXLE RIGHT | LR023715 LR025986 LR055291 RBX500531 |
|
 |

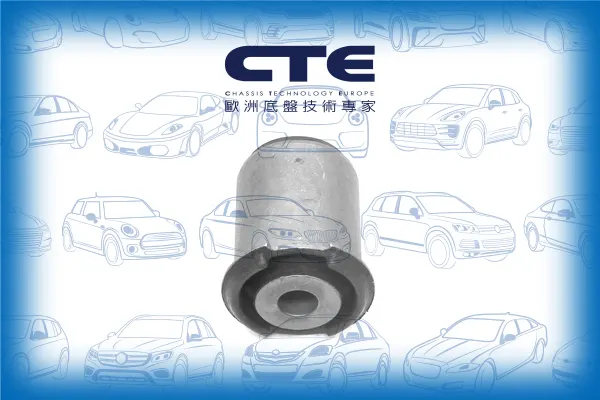

CBH31009 | FRONT AXLE; BOTH SIDES; LOWER; FRONT | RBX500431 RBX500432 |
|
 |
CBH31010 | FRONT AXLE; UPPER; BOTH SIDES | LR018345 RBJ000120 SK RBJ000130 SK RBX000200 XH423A262AA XH423A262AB |
|
 |

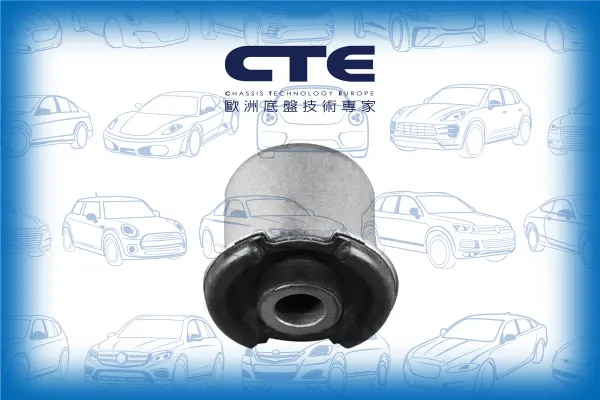

CBH31019 | FRONT AXLE LEFT; FRONT AXLE RIGHT | RBX500440 |
|
 |

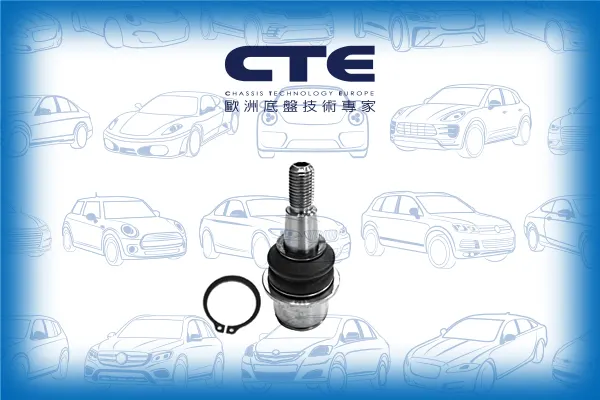

CBJ31003 | FRONT AXLE LEFT; FRONT AXLE RIGHT; LOWER; OUTER | 5H223395DA 8H223K209AA 8H223K209AB RBK500040 RBK500140 RBK500180 RBK500230 RBK500240 RBK500280 RBK500300 |
|
 |

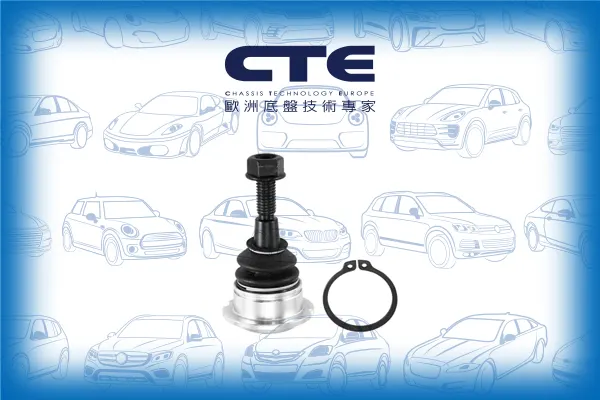

CBJ31008 | FRONT AXLE LEFT; FRONT AXLE RIGHT; UPPER; OUTER | RBK500161 RBK500170 |
|
 |

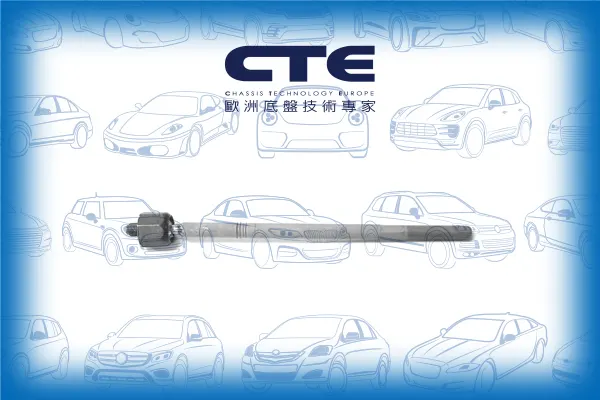

CRE31002 | FRONT AXLE LEFT; FRONT AXLE RIGHT (D= M16X1.5 , C= M16X1.5) | QFK500030 |
|
 |

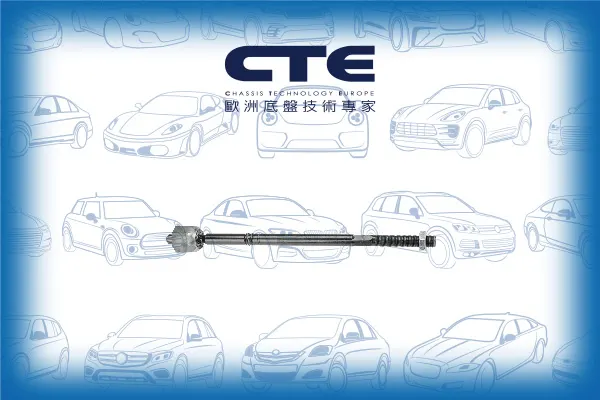

CRE31007 | FRONT AXLE LEFT; FRONT AXLE RIGHT | QFK500030 |
|
 |

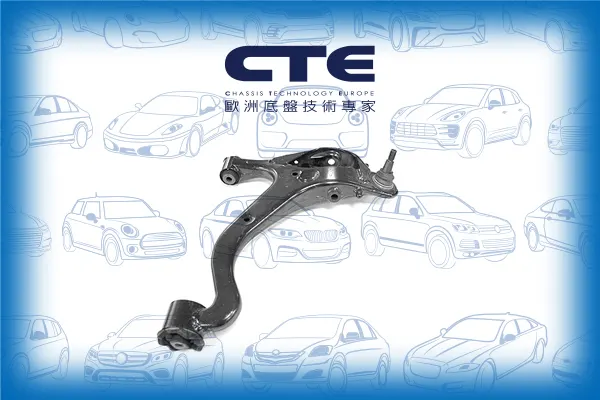

CS-3105L | LOWER; FRONT AXLE LEFT | LR028252 LR029306 RBJ500456 RBJ501290 RBJ501390 RBJ501510 RBJ501610 |
|
 |

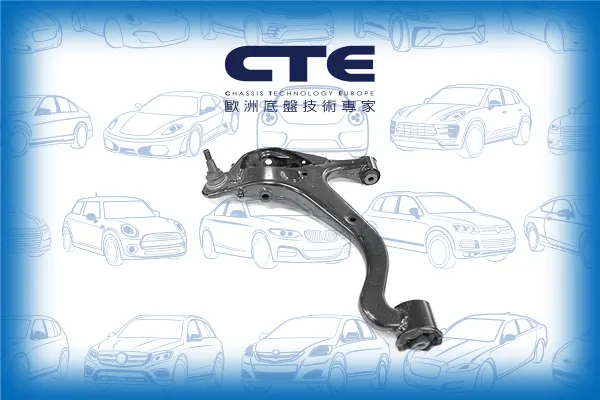

CS-3105R | LOWER; FRONT AXLE RIGHT | LR028248 LR029304 RBJ500446 RBJ501280 RBJ501380 RBJ501500 RBJ501600 |
|
 |

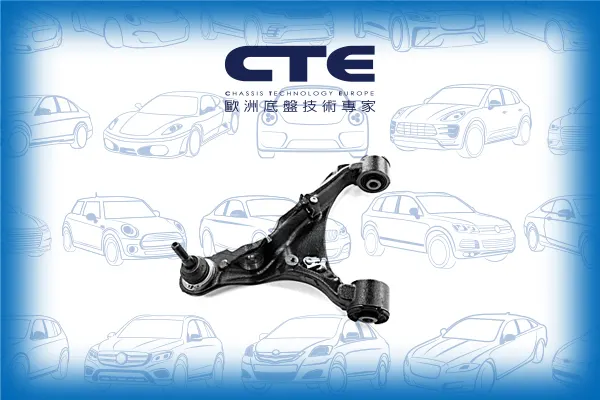

CS-3106L | FRONT AXLE LEFT; UPPER | LR014629 LR051618 LR074838 RBJ500790 RBJ500850 |
|
 |

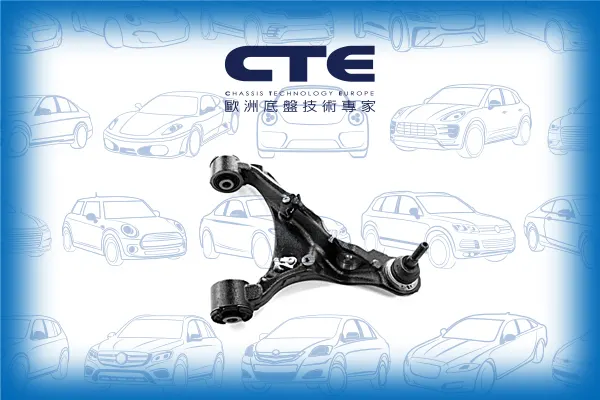

CS-3106R | FRONT AXLE RIGHT; UPPER | LR014619 LR026095 LR051617 RBJ500780 RBJ500840 |
|
 |
CS-3113L | FRONT AXLE; LOWER; REAR; LEFT | LR018344 RBJ000130 RBJ018344 XH423397BA XH423397BB |
|
 |
CS-3113R | FRONT AXLE; LOWER; REAR; RIGHT | LR018343 RBJ000120 RBJ018343 XH423397AA XH423397AB |
|
 |

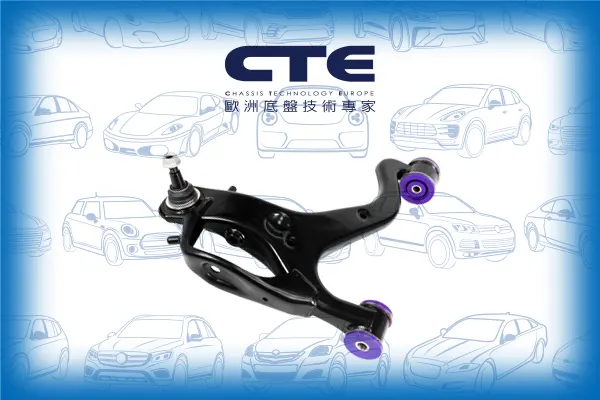

CS-3132L | FRONT AXLE, BOTTOM LEFT | ||
 |

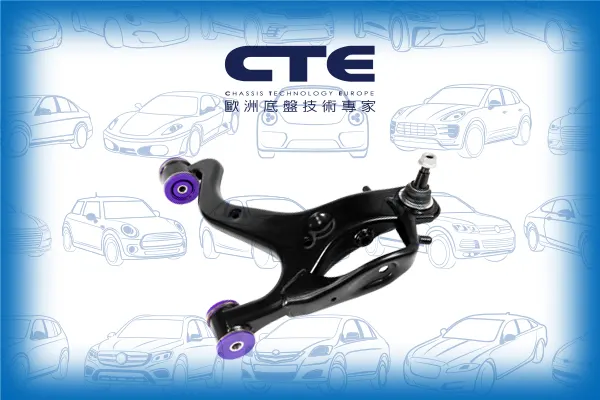

CS-3132R | FRONT AXLE, BOTTOM RIGHT | ||
 |

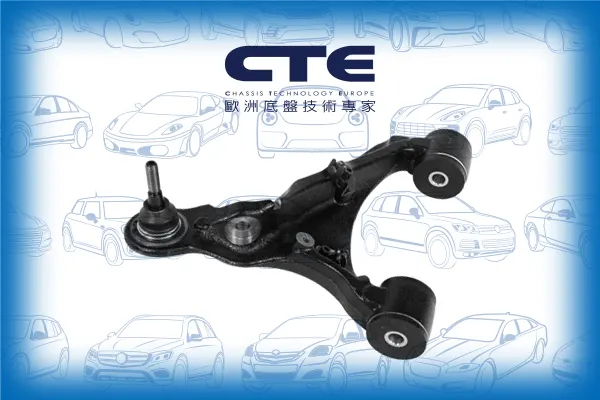

CS-3133L | FRONT AXLE, TOP LEFT | ||
 |

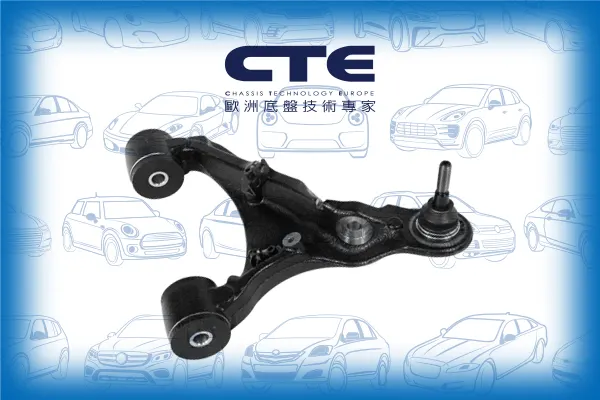

CS-3133R | FRONT AXLE, TOP RIGHT | ||
 |

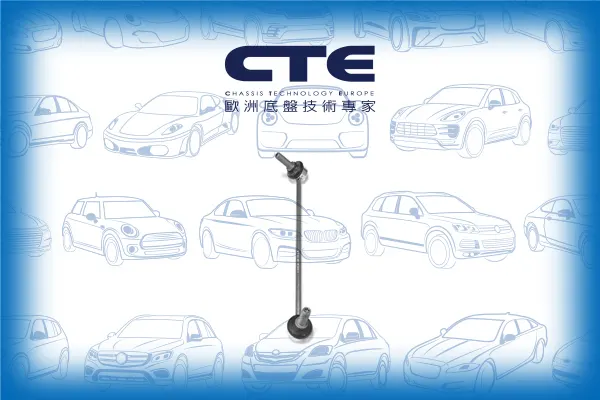

CSL31009L | FRONT AXLE LEFT (A= 345MM) | RBM500150 |
|
 |

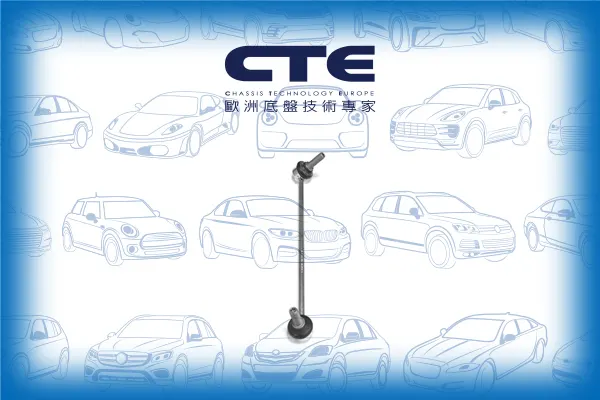

CSL31009R | FRONT AXLE RIGHT (A= 345MM) | RBM500140 |
|
 |

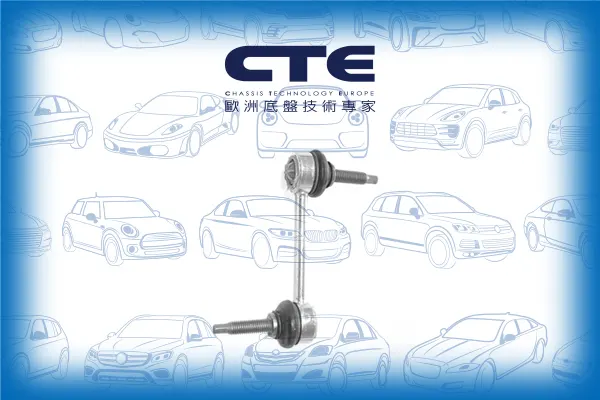

CSL31010 | REAR AXLE LEFT; REAR AXLE RIGHT (A= 131.5MM) | RGD500140 |
|
 |
CSL31011 | FRONT AXLE LEFT; FRONT AXLE RIGHT (A= 379.5MM) | 3H423B438AA 3H423B438AB 3H423B438AC LR030047 LR073340 RBM000010 RBM000011 RBM500200 XH423B438AA |
|
 |
CSL31012 | REAR AXLE LEFT; REAR AXLE RIGHT (A= 120MM) | 3H425A994AA 3H425A994AB LR030048 RGD000131 RGD500150 XH425A994AA |
|
 |
CTE31005 | FRONT AXLE LEFT; FRONT AXLE RIGHT (C= M16X1.5) | LR010675 QJB500040 |
|
 |

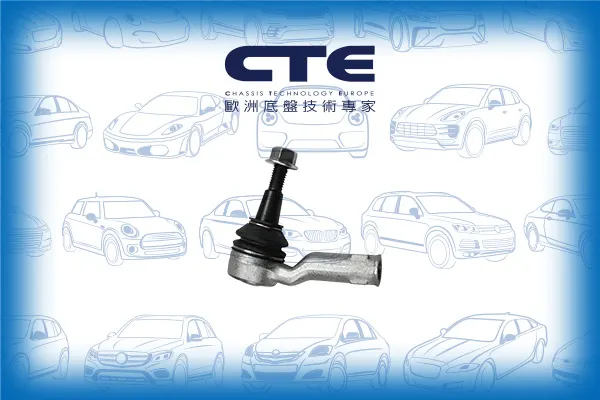

CTE31008 | FRONT AXLE LEFT; FRONT AXLE RIGHT | LR010676 QJB500070 |
|
 |

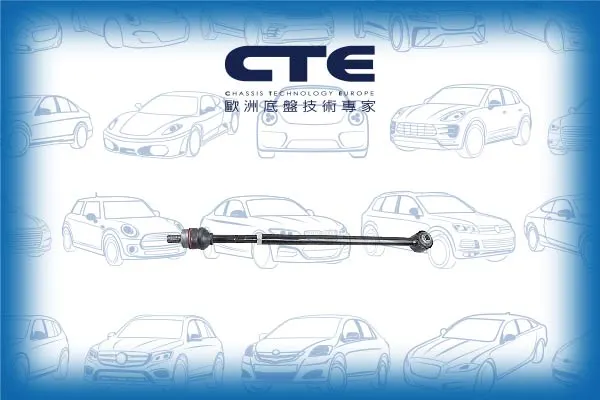

CTE31010 | REAR AXLE | 5H22-4717-AA 5H22-4717-AB 9H22-4717-AA LR019117 RGD500083 RGD500190 |
| Model (Year) |
|---|
|
RANGE ROVER SPORT I (L320) RANGE ROVER SPORT II (L494) |
